Product CatalogPart Number
STTH60W02CW
Manufacturer
STMicroelectronicsDescription
DIODE ARRAY GP 200V 30A TO-247
Datasheet
DatasheetPackage
TO-247-3
In Stock
42,539 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STTH60W02CW
STTH60W02CW

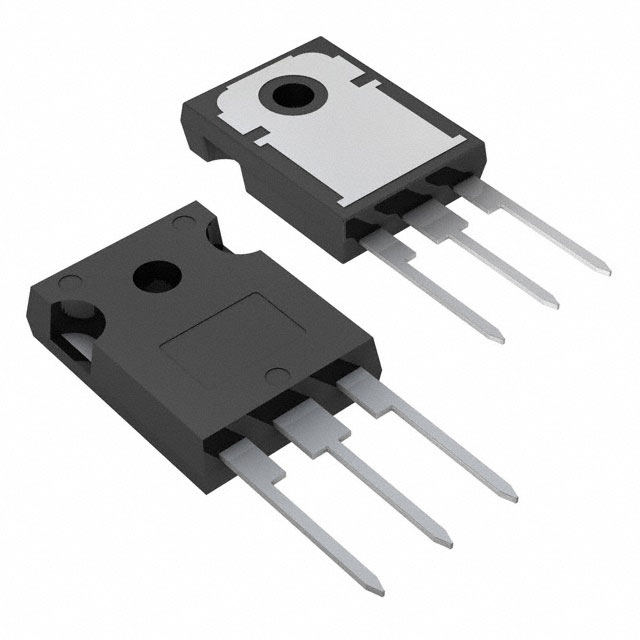

lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 200 V 30A Through Hole TO-247-3
Quick Inquiry
STTH60W02CW
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature - Junction | 175°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Base Product Number | STTH60 |
| Reverse Recovery Time (trr) | 30 ns |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | STTH60W03CW | STTH6002CPI | STTH6002CW | STTH6003CW |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARRAY GP 300V 30A TO-247 | DIODE ARRAY GP 200V 30A TOP-3I | DIODE ARRAY GP 200V 30A TO247-3 | 300V , 60 A dual Ultrafast Diod |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
