SWC-0.90-330

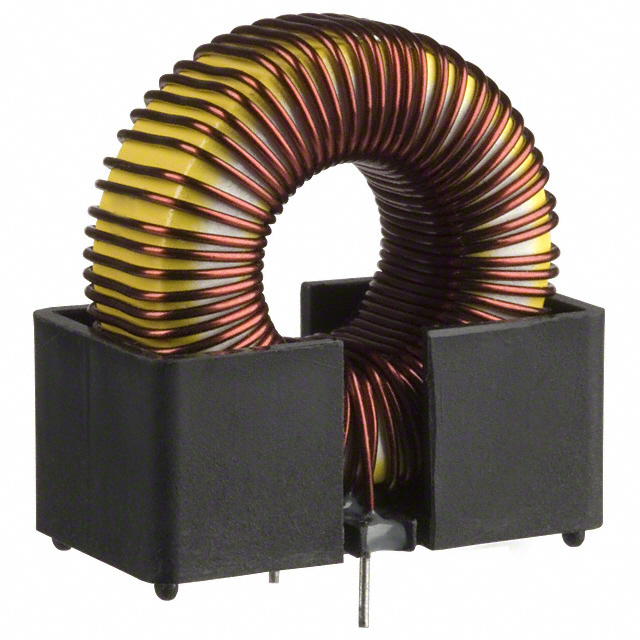

lmages are for reference only.SWC-0.90-330
FIXED IND 330UH 900MA 180MOHM TH
DatasheetRadial, Vertical (Open)
48,557 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Toroidal Inductor 900 mA 180mOhm Max Radial, Vertical (Open)
SWC-0.90-330
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.827" L x 0.449" W (21.00mm x 11.40mm) |
| Height - Seated (Max) | 0.937" (23.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | SWC-0.90-330 | SWC-0.64-470 | SWC-0.64-470 | SWC-0.9-267 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330UH 900MA 180MOHM TH | FIXED IND 470UH 640MA 160MOHM TH | FIXED IND 470UH 640MA 160MOHM TH | INDUCTOR 267UH .90A 50KHZ CLP |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Bulk | Bulk | Bulk | Tray |
