SWF 3225CF-1R0M

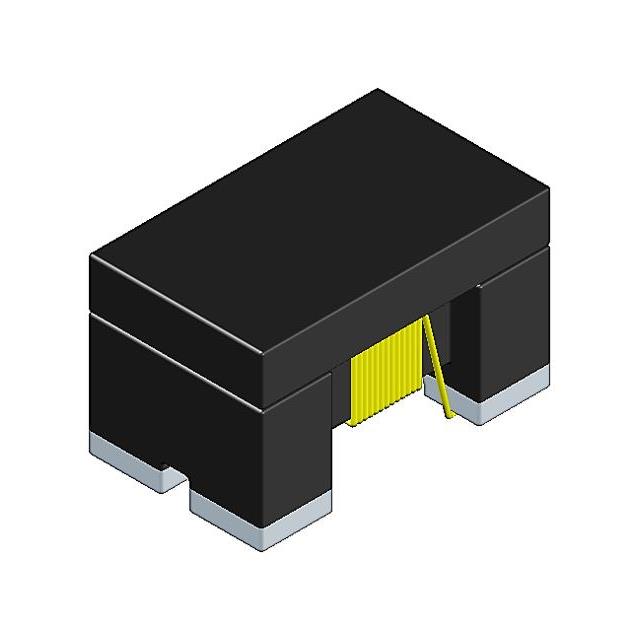

lmages are for reference only.SWF 3225CF-1R0M
1.0 UH UNSHIELDED WIREWOUND INDU
DatasheetNonstandard
76,765 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Wirewound Inductor 1.2 A 120mOhm Max Nonstandard
SWF 3225CF-1R0M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | SWF3225CF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 290MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.142" L x 0.110" W (3.60mm x 2.80mm) |
| Height - Seated (Max) | 0.102" (2.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SWF 3225CF-100M | SWF 3225CF-2R2M | SWF 3225CF-3R3M | SWF 3225CF-4R7M |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10 UH UNSHIELDED WIREWOUND INDUC | 2.2 UH UNSHIELDED WIREWOUND INDU | 3.3 UH UNSHIELDED WIREWOUND INDU | 4.7 UH UNSHIELDED WIREWOUND INDU |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
