SWT-0.16-178

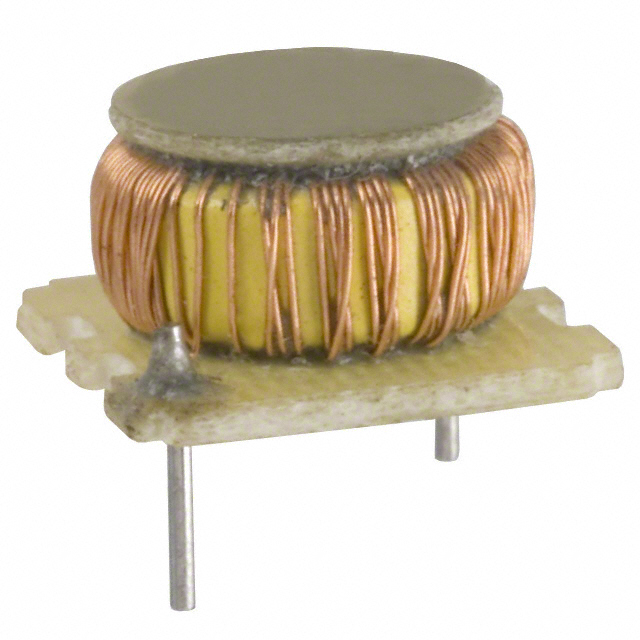

lmages are for reference only.SWT-0.16-178
FIXED IND 178UH 160MA 2.8 OHM TH
DatasheetRadial, Horizontal (Open)
85,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
178 µH Unshielded Toroidal Inductor 160 mA 2.8Ohm Radial, Horizontal (Open)
SWT-0.16-178
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 178 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.8Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.339" L x 0.339" W (8.60mm x 8.60mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | SWT-0.13-259 | SWT-0.2-374 | SWT-0.20-118 | SWT-0.20-118 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 259UH 130MA 3.4 OHM TH | FIXED IND 374UH 200MA 2.7 OHM TH | FIXED IND 118UH 200MA 1.8 OHM TH | FIXED IND 118UH 200MA 1.8 OHM TH |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Bulk | Tray | Bulk | Bulk |
