SX100DN
lmages are for reference only.SX100DN
SENSOR 100PSID 0.19" .15V
Datasheet4-SIP Module
64,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 150 mV (5V) 4-SIP Module
SX100DN
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 150 mV (5V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 12V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbless |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | 150PSI (1034.21kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

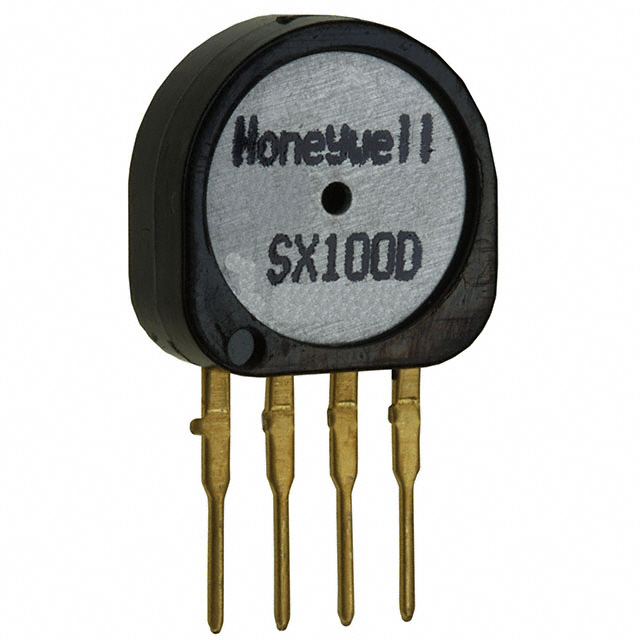

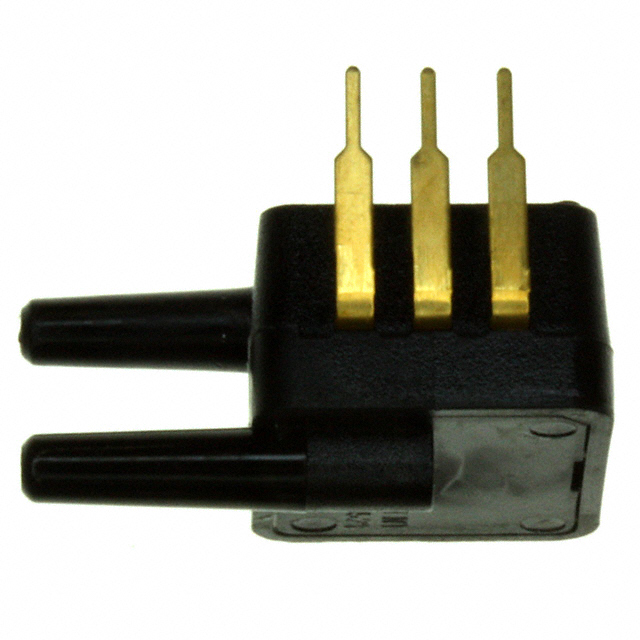

| Part Number | SX100D | SX100D | SX100DD4 | SX100DD4 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 100PSID .15V BUTTON | SENSOR 100PSID .15V BUTTON | SENSOR 100PSID 0.09" .15V 6DIP | SENSOR 100PSID 0.09" .15V 6DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
