T55B156M020C0070
lmages are for reference only.T55B156M020C0070
CAP TANT POLY 15UF 20V 1411
Datasheet1411 (3528 Metric)
106,111 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µF Molded Tantalum Polymer Capacitor 20 V 1411 (3528 Metric) 70mOhm @ 100kHz
T55B156M020C0070
| Category | Capacitors - Tantalum Polymer Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | vPolyTan™ T55 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Ratings | - |
| Features | General Purpose |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

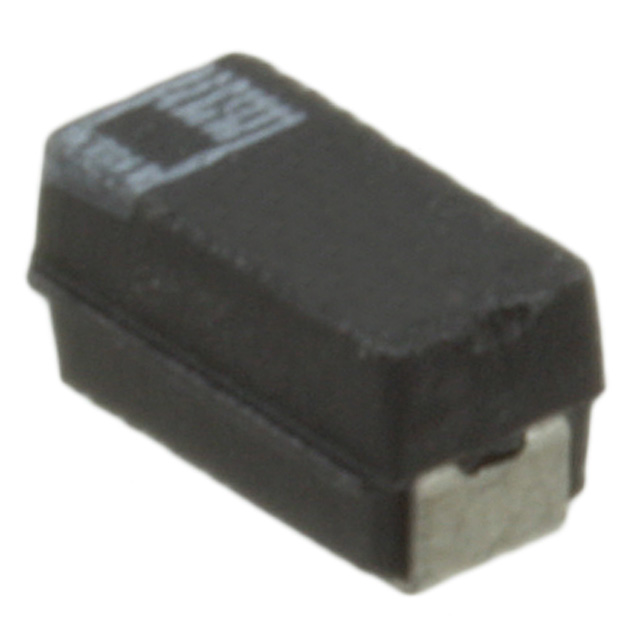

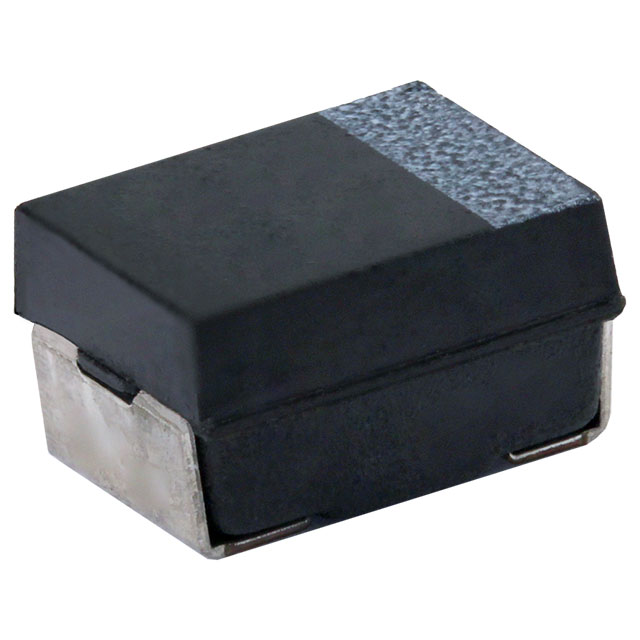

| Part Number | T55B156M020C0090 | T55B156M025C0100 | T55B156M016C0090 | T55B156M016C0150 |
| Manufacturer | Vishay Polytech | Vishay Sprague | Vishay Sprague | Vishay Polytech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT POLY 15UF 20V 1411 | CAP TANT POLY 15UF 25V 1411 | CAP TANT POLY 15UF 16V 1411 | CAP TANT POLY 15UF 16V 1411 |
| Series | vPolyTan™ T55 | vPolyTan™ T55 | vPolyTan™ T55 | vPolyTan™ T55 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) |
