T60404N4647X260
lmages are for reference only.T60404N4647X260
CURRENT SENSOR 100A/150A, PRI OP
DatasheetModule, Single Pass Through
45,881 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A, 150A 1 Channel Closed Loop Unidirectional Module, Single Pass Through
T60404N4647X260
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | VACUUMSCHMELZE |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Closed Loop |
| Current - Sensing | 100A, 150A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | DC ~ 100kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.7% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 1µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Unidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

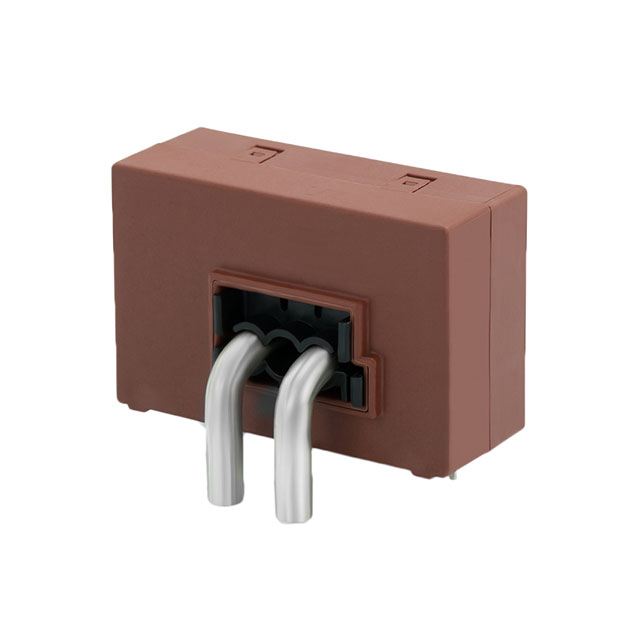

| Part Number | T60404N4647X261 | T60404N4647X160 | T60404N4647X161 | T60404N4647X460 |
| Manufacturer | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CURRENT SENSOR 100A, PRI OPEN, 5 | CURRENT SENSOR,100A, PRI OPEN, 5 | CURRENT SENSOR, 50A, PRI OPEN, 5 | CURRENT SENSOR, 50A, 3 PRI PINS, |
| Series | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE |
| Packaging | Box | Box | Box | Box |
