Product CatalogPart Number
T60405R6128X033
Manufacturer
VACUUMSCHMELZEDescription
6128X033
Datasheet
DatasheetPackage
Vertical, 4 PC Pin
In Stock
34,184 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
T60405R6128X033
T60405R6128X033
lmages are for reference only.Payment Methods
Delivery Services
3.7 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 2.8 kOhms @ 100 kHz 15A DCR 11mOhm
Quick Inquiry
T60405R6128X033
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | VACUUMSCHMELZE |
| Series | - |
| Packaging | Box |
| RoHS Status | |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 3.7 mH @ 100 kHz |
| Current Rating (Max) | 15A |
| DC Resistance (DCR) (Max) | 11mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 60°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.654" L x 1.142" W (42.00mm x 29.00mm) |
| Height (Max) | 1.587" (40.30mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | 2.8 kOhms @ 100 kHz |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |

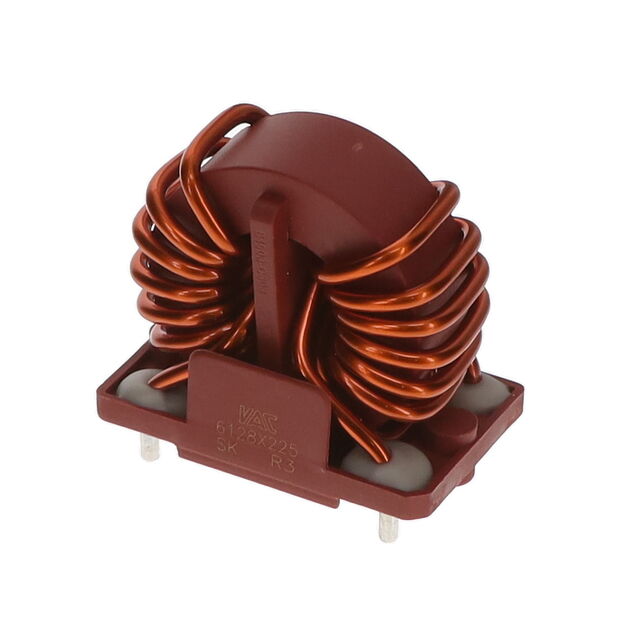

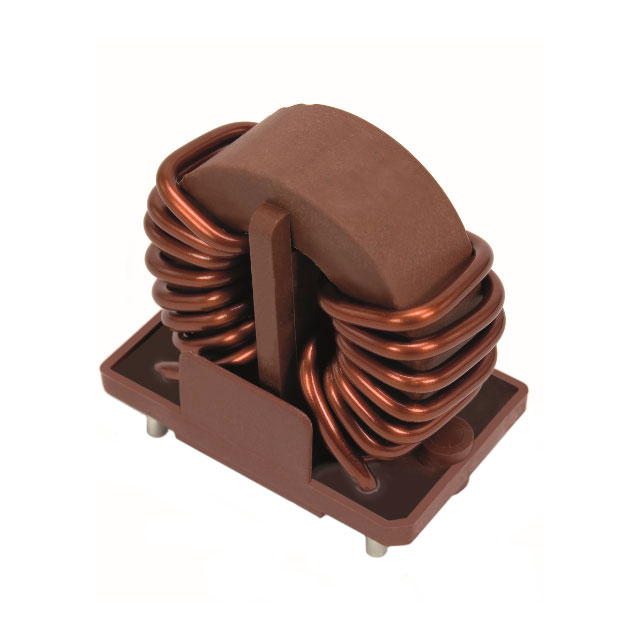

| Part Number | T60405R6128X031 | T60405R6128X032 | T60405R6128X220 | T60405R6128X225 |
| Manufacturer | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CMC 900UH 30A 2LN 900 OHM TH | 6128X032 | 6128X220 | CMC 1.01MH 25A 2LN 970 OHM TH |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
