T7CS5D-06

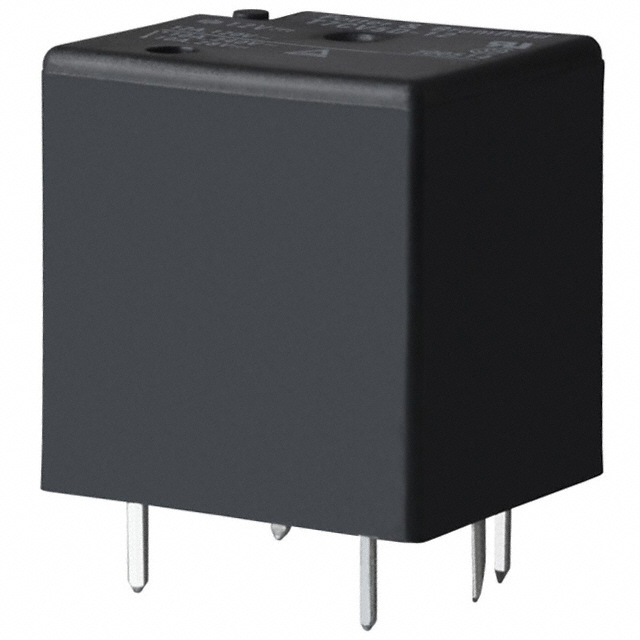

lmages are for reference only.T7CS5D-06
RELAY GEN PURPOSE SPDT 12A 6V
Datasheet-
74,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
T7CS5D-06
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T7C |
| Packaging | Tube |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 6VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 240VAC, 24VDC - Max |
| Load - Max Switching | 2880VA, 288W |
| Coil Current | 60 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 100 Ohms |
| Base Product Number | T7CS5 |
| Product Attribute |  |
 |
 |
 |
| Part Number | T7CS5D-05 | T7CS5D-09 | T7CS5D-12 | T7CS5D-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | Not applicable | |||
| Description | RELAY GEN PURPOSE SPDT 12A 5V | RELAY GEN PURPOSE SPDT 12A 9V | RELAY GEN PURPOSE SPDT 12A 12V | RELAY GEN PURPOSE SPDT 12A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Tube | Tube |
