T90N1D12-12

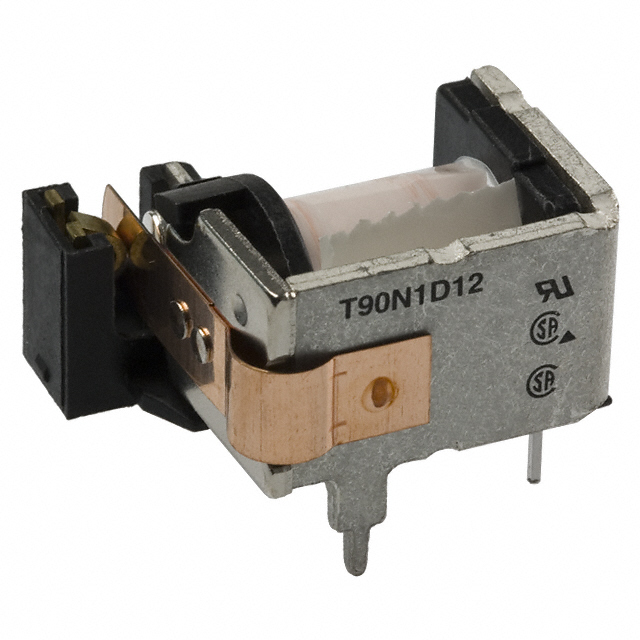

lmages are for reference only.T90N1D12-12
RELAY GEN PURPOSE SPST 30A 12V
Datasheet-
15,409 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
T90N1D12-12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T90 |
| Packaging | Tray |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 4155VA |
| Coil Current | 77 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 155 Ohms |
| Base Product Number | T90N1 |
| Product Attribute |  |
|
 |
|
| Part Number | T90N1D12-12-17 | T90N1D12-12-19 | T90N1D12-18 | T90N1D12-18-05 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | Not applicable | Not applicable | ||
| Description | RELAY PWR | RELAY GEN PURPOSE SPST 30A 12V | RELAY GEN PURPOSE SPST 30A 18V | RELAY GEN PURPOSE SPST 30A 18V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
