T92HP7A2X-120
lmages are for reference only.T92HP7A2X-120
POWER RELAYS, STANDARD, MONOSTAB
Datasheet-
82,031 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount
T92HP7A2X-120
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T92H |
| Packaging | Tray |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 45 A |
| Switching Voltage | 600VAC - Max |
| Load - Max Switching | 27000VA |
| Coil Current | 130 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 950 Ohms |
| Base Product Number | T92HP |
| Product Attribute |  |
 |
 |
 |

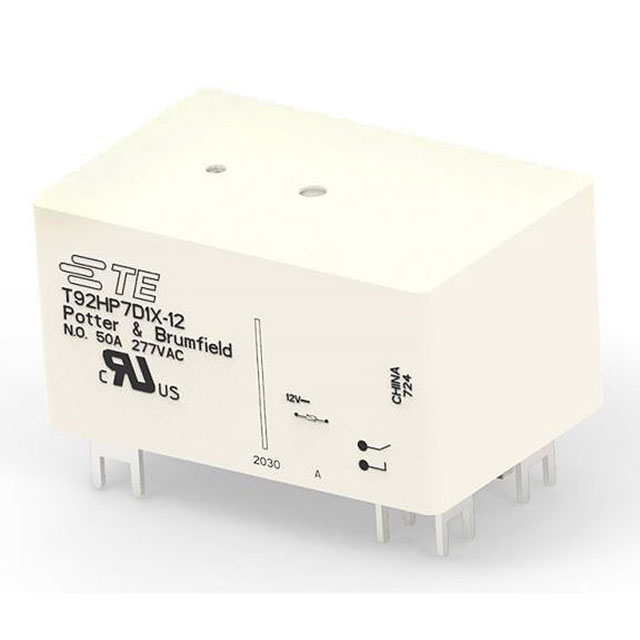

| Part Number | T92-4012 | T92HP7D1X-12 | T92HP7D1X-24 | T92P11A22-12 |
| Manufacturer | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | General Purpose Relays | RELAY GEN PURPOSE DPST 50A 12V | RELAY GEN PURPOSE DPST 50A 24V | RELAY GEN PURPOSE DPDT 30A 12V |
| Series | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tray | Tray | Bulk |
