T9ES1D14-24

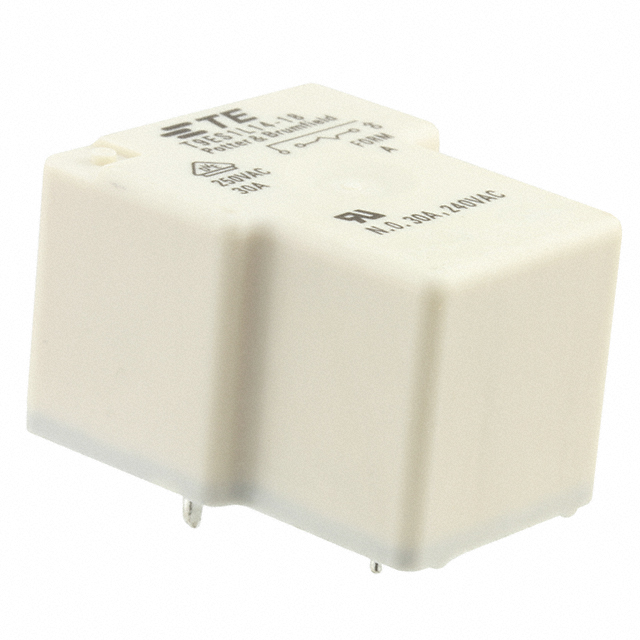

lmages are for reference only.T9ES1D14-24
RELAY GEN PURPOSE SPST 30A 24V
Datasheet-
43,509 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
T9ES1D14-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T9E |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 7500VA |
| Coil Current | 41.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Approval Agency | UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 576 Ohms |
| Base Product Number | T9ES1 |
| Product Attribute | |
|
|
|
| Part Number | T9ES1D14-18 | T9ES1D12-12 | T9ES1D12-18=T9E | T9ES1D22-12 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | Not applicable | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 30A 18V | RELAY GEN PURPOSE SPST 30A 12V | RELAY | RELAY GEN PURPOSE SPST 30A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
