TA6F43AHM3_A/H

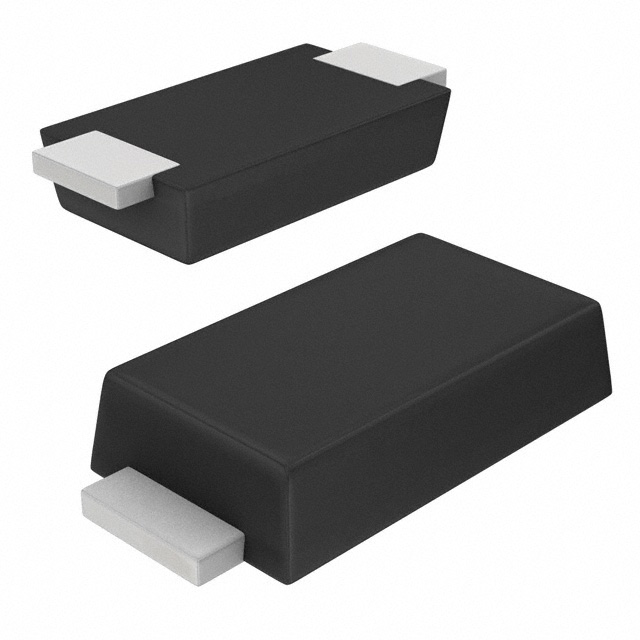

lmages are for reference only.TA6F43AHM3_A/H
TVS DIODE 36.8VWM 59.3VC DO221AC
DatasheetDO-221AC, SMA Flat Leads
51,338 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
59.3V Clamp 10.1A Ipp Tvs Diode Surface Mount DO-221AC (SlimSMA)
TA6F43AHM3_A/H
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | * |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 36.8V |
| Voltage - Breakdown (Min) | 40.9V |
| Voltage - Clamping (Max) @ Ipp | 59.3V |
| Current - Peak Pulse (10/1000µs) | 10.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Base Product Number | TA6F43 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | TA6F43AHM3/6A | TA6F43AHM3/6B | TA6F43AHM3_A/I | TA6F10AHM3/6A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 36.8VWM 59.3VC DO221AC | TVS DIODE 36.8VWM 59.3VC DO221AC | TVS DIODE 36.8VWM 59.3VC DO221AC | TVS DIODE 8.55VWM 14.5VC DO221AC |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
