Product CatalogPart Number
TB003V-500-P05BE
Manufacturer
Same SkyDescription
TERMINAL BLOCK, SCREW TYPE, 5.00
Datasheet
DatasheetPackage
-
In Stock
31,995 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TB003V-500-P05BE
TB003V-500-P05BE
lmages are for reference only.Payment Methods
Delivery Services
5 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Quick Inquiry
TB003V-500-P05BE
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | Same Sky |
| Series | TB003V-500 |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 5 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Vertical with Board |
| Current | 10 A |
| Voltage | 300 V |
| Wire Gauge | 14-26 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Features | Interlocking (Side) |
| Color | Blue |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M2.5 |
| Base Product Number | TB003 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

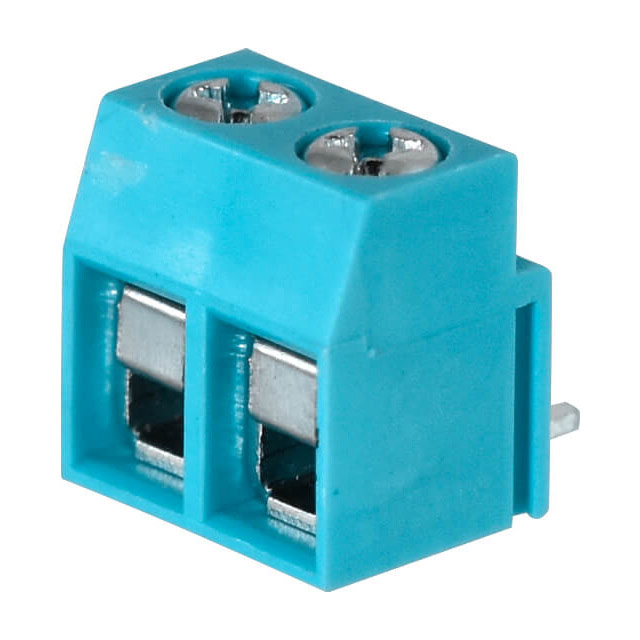

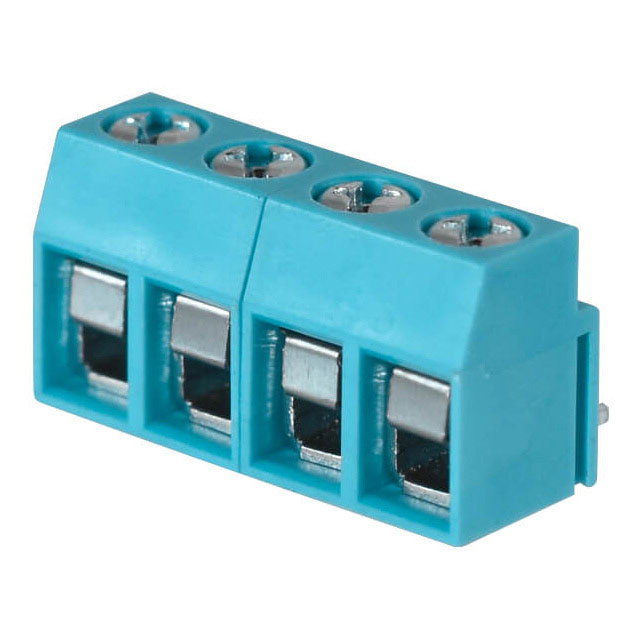

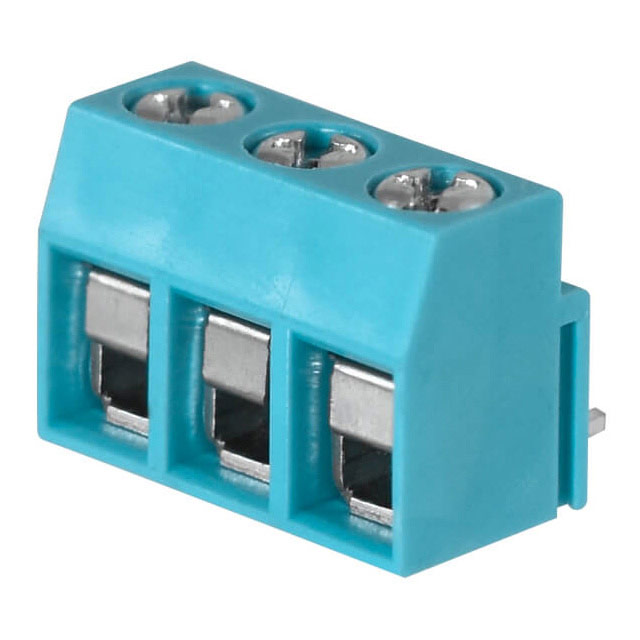

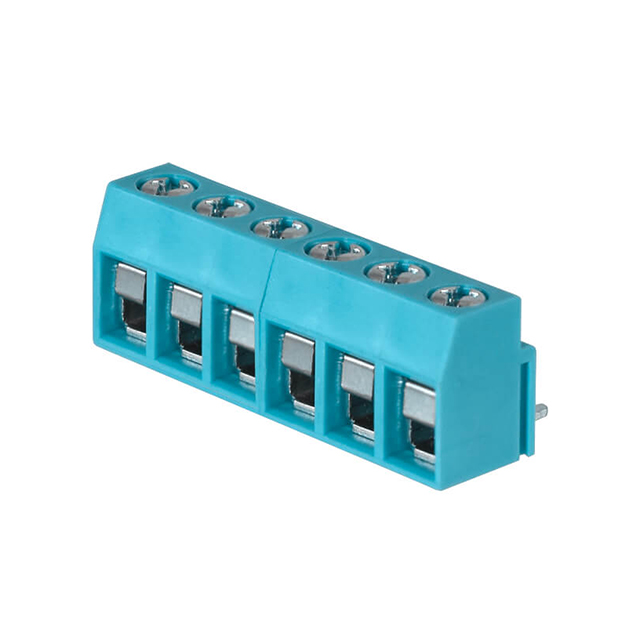

| Part Number | TB003V-500-P02BE | TB003V-500-P03BE | TB003V-500-P04BE | TB003V-500-P06BE |
| Manufacturer | Same Sky | Same Sky | Same Sky | Same Sky |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TERMINAL BLOCK, SCREW TYPE, 5.00 | TERMINAL BLOCK, SCREW TYPE, 5.00 | TERMINAL BLOCK, SCREW TYPE, 5.00 | TERMINAL BLOCK, SCREW TYPE, 5.00 |
| Series | TB003V-500 | TB003V-500 | TB003V-500 | TB003V-500 |
| Packaging | Bag | Bag | Bag | Bag |
