TC7S00FU,LF

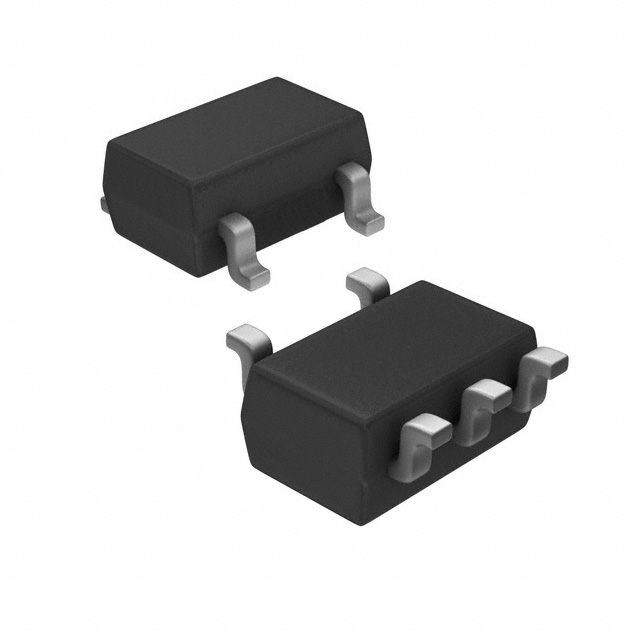

lmages are for reference only.TC7S00FU,LF
IC GATE NAND 1CH 2-INP 5SSOP
Datasheet5-TSSOP, SC-70-5, SOT-353
22,517 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 1 Channel 5-SSOP
TC7S00FU,LF
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TC7S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 7S00 |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-SSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TC7S00F,LF | TC7S02F,LF | TC7S02FU,LF | TC7S02FUT5LFT |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | IC GATE NAND 1CH 2-INP SMV | IC GATE NOR 1CH 2-INP SMV | IC GATE NOR 1CH 2-INP 5SSOP | IC GATE NOR 1CH 2-INP USV |
| Series | TC7S | TC7S | TC7S | TC7S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
