TC7SET04F,LJ(CT

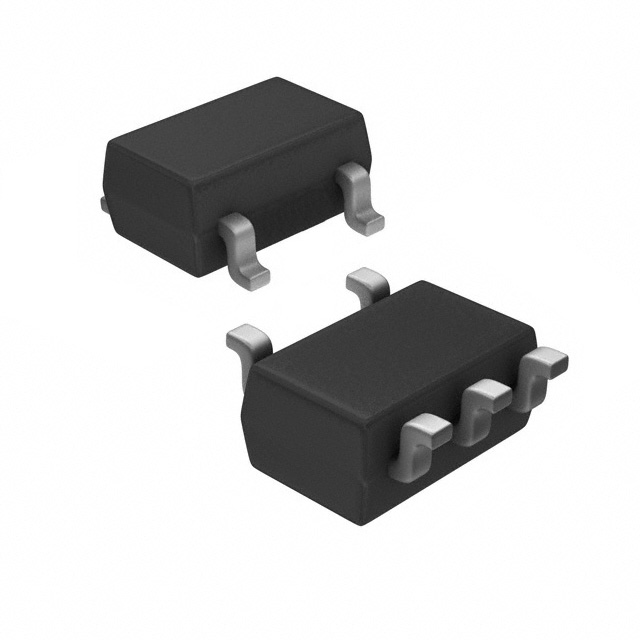

lmages are for reference only.TC7SET04F,LJ(CT
IC INVERTER 1CH 1-INP SMV
DatasheetSC-74A, SOT-753
44,949 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Inverter IC 1 Channel SMV
TC7SET04F,LJ(CT
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TC7SET |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 7SET04 |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 10.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMV |
| Package / Case | SC-74A, SOT-753 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TC7SET04FU,LJ(CT | TC7SET00F,LJ(CT | TC7SET00FU,LJ(CT | TC7SET02F,LJ(CT |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC INVERTER 1CH 1-INP 5SSOP | IC GATE NAND 1CH 2-INP SMV | IC GATE NAND 1CH 2-INP 5SSOP | IC GATE NOR 1CH 2-INP SMV |
| Series | TC7SET | TC7SET | TC7SET | TC7SET |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
