TC7W02F(TE12L)
lmages are for reference only.TC7W02F(TE12L)
IC GATE NOR 2CH 2-INP 8-SOP
Datasheet8-SOIC (0.122", 3.10mm Width)
27,684 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NOR Gate IC 2 Channel 8-SOP
TC7W02F(TE12L)
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | 7W |
| Packaging | Digi-Reel? |
| RoHS Status | RoHS non-compliant |
| Base Product Number | 7W02 |
| Logic Type | NOR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40＜C ~ 85＜C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.122", 3.10mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |

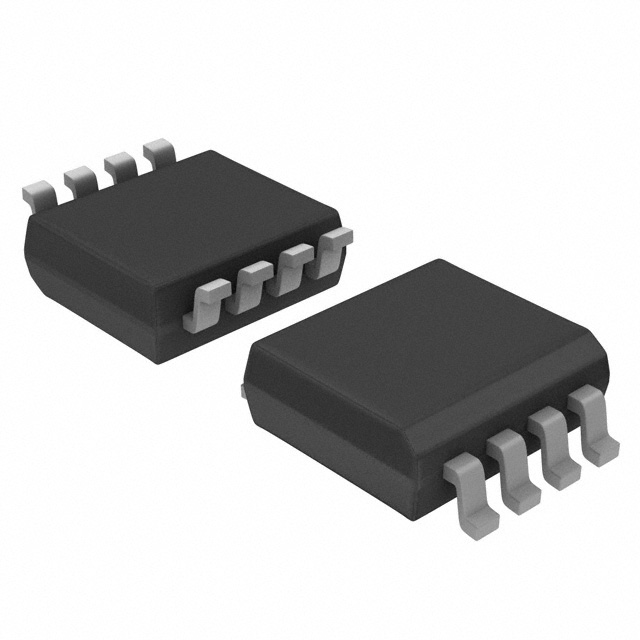

.jpg "TC7W02FU(TE12L)") |
| Part Number | TC7W00FK,LF | TC7W00FKTE85LF | TC7W00FUTE12LF | TC7W02FU(TE12L) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS non-compliant | |
| Description | IC GATE NAND 2CH 2-INP 8SSOP | IC GATE NAND 2CH 2-INP 8SSOP | IC GATE NAND 2CH 2-INP 8SSOP | IC GATE NOR 2CH 2-INP SM8 |
| Series | TC7W | TC7W | TC7W | 7W |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

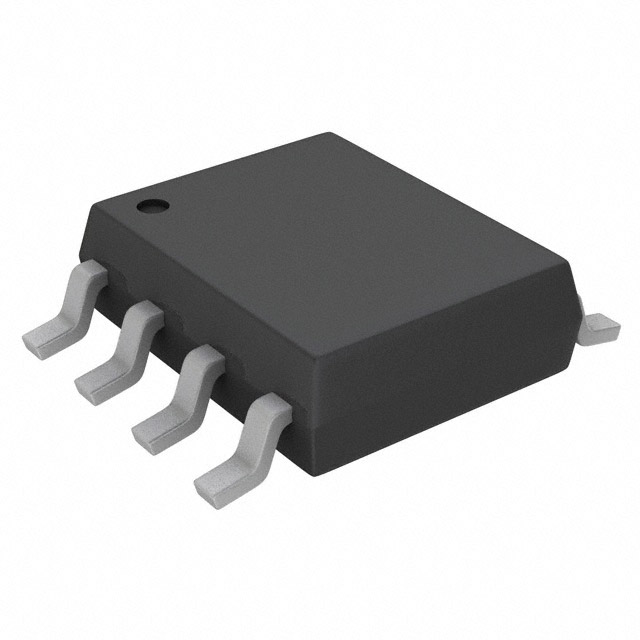

.jpg "TC7W04FU(TE12L)")
