TCF225
lmages are for reference only.TCF225
CUBEFuse 225 Amp
DatasheetBlade Type, Module
90,712 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
225A 600 VAC 300 VDC Fuse Rectangular Requires Holder
TCF225
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | CUBEFuse™ TCF |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Rectangular |
| Current Rating (Amps) | 225A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | CF |
| Approval Agency | CE, CSA, UL |
| Operating Temperature | -40°C ~ 80°C |
| Breaking Capacity @ Rated Voltage | 200kA |
| Package / Case | Blade Type, Module |
| Size / Dimension | 2.913" L x 1.339" W x 2.598" H (74.00mm x 34.00mm x 66.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute | |
|
|
 |
| Part Number | TCF225RN | TCF1 | TCF100RN | TCF10RN |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||

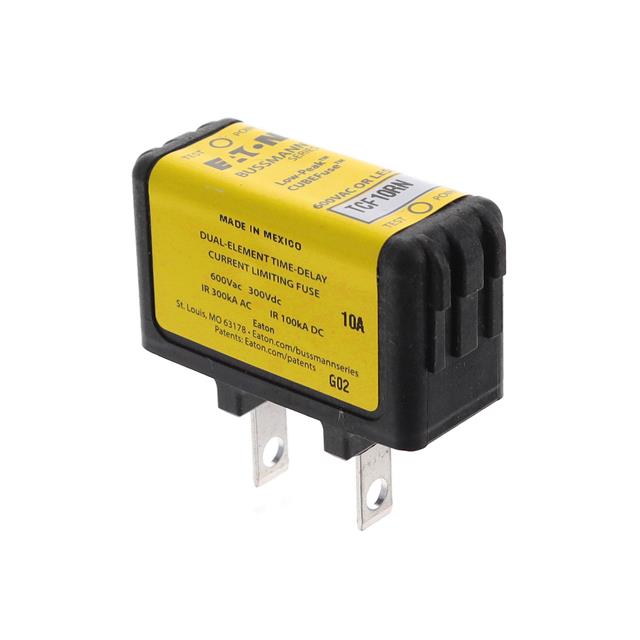

| Description | CUBEFUSE 225 AMP | FUSE RECT 1A 600VAC/300VDC BLADE | CUBEFUSE 100 AMP NON-INP | FUSE DUAL ELEMENT 10A |
| Series | TCF | CUBEFuse™ TCF | * | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
