Product CatalogPart Number
TCK-103
Manufacturer
Traco PowerDescription
INDUCTORS
Datasheet
DatasheetPackage
Horizontal, 4 PC Pin
In Stock
39,481 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TCK-103
TCK-103
lmages are for reference only.Payment Methods
Delivery Services
285 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 16A DCR 6mOhm
Quick Inquiry
TCK-103
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Traco Power |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 285 µH @ 100 kHz |
| Current Rating (Max) | 16A |
| DC Resistance (DCR) (Max) | 6mOhm |
| Voltage Rating - DC | 500V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.630" L x 0.630" W (16.00mm x 16.00mm) |
| Height (Max) | 0.591" (15.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

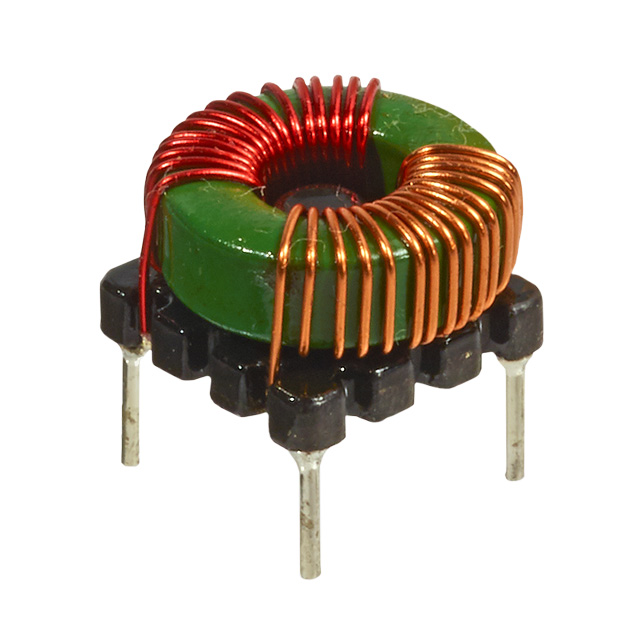

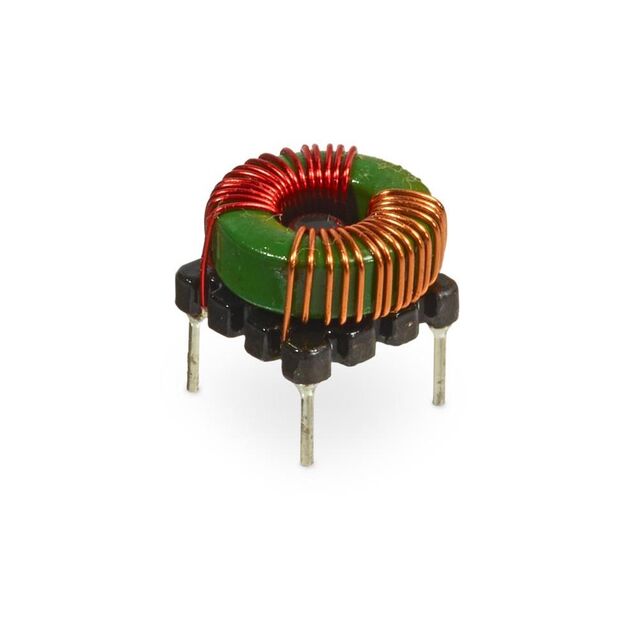

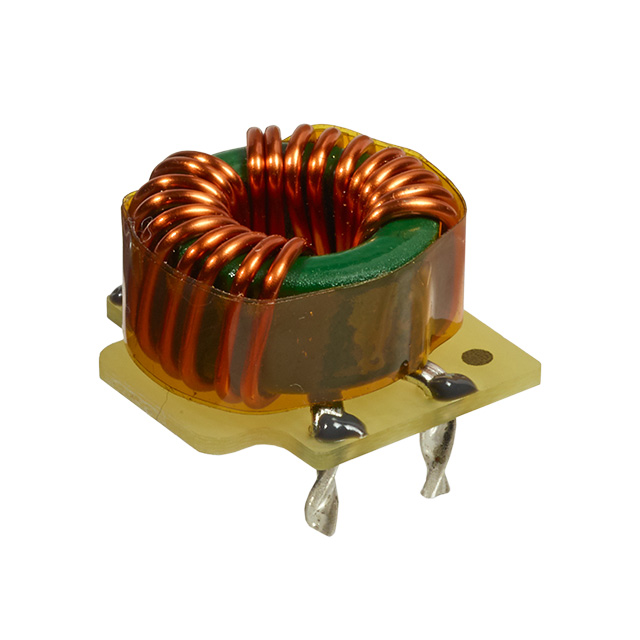

| Part Number | TCK-100 | TCK-101 | TCK-017 | TCK-026 |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC TH | CMC 305UH 2LN TH | CMC 497UH 1.7A 2LN TH | INDUCTORS |
| Series | - | - | - | - |
| Packaging | Bag | Tube | Bag | Bulk |
