TCLAMP0602N.TCT

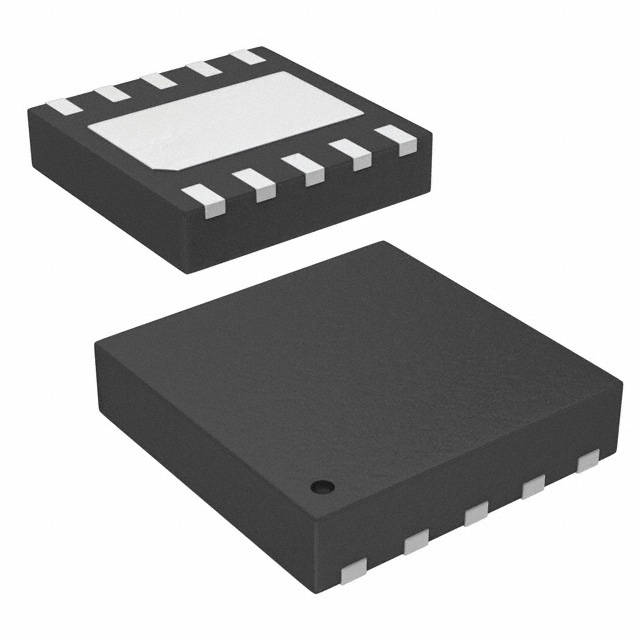

lmages are for reference only.TCLAMP0602N.TCT
TVS DIODE 6VWM 29VC SLP2626P10
Datasheet10-UFDFN Exposed Pad
26,861 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
29V Clamp 95A (8/20µs) Ipp Tvs Diode Surface Mount SLP2626P10 (2.6x2.6)
TCLAMP0602N.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | TransClamp™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Breakdown (Min) | 6.8V |
| Voltage - Clamping (Max) @ Ipp | 29V |
| Current - Peak Pulse (10/1000µs) | 95A (8/20µs) |
| Power - Peak Pulse | 2500W (2.5kW) |
| Power Line Protection | Yes |
| Applications | Ethernet, Telecom |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | SLP2626P10 (2.6x2.6) |
| Base Product Number | TCLAMP0602 |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TCLAMP0882S.TCT | TCLAMP1201S.TCT | TCLAMP1202P.TGT | TCLAMP1272S.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | TVS DIODE 8VWM 9.5VC SOT23-6 | TVS DIODE 12VWM 26.6VC SOT23-6 | TVS DIODE 12VWM 25VC SLP2020P5 | TVS DIODE 12VWM 30VC SOT23-6 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
