TCM1-63AX-2+
Manufacturer
Mini-CircuitsDescription
RF TRANSFORMER SMT, 10 - 6000 MH
Datasheet
DatasheetPackage
6-SMD, Flat Leads
In Stock
94,104 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TCM1-63AX-2+
TCM1-63AX-2+
lmages are for reference only.Payment Methods
Delivery Services
RF Balun 10MHz ~ 6GHz 50 / 50Ohm 6-SMD, Flat Leads
Quick Inquiry
TCM1-63AX-2+
Specifications
| Category | RF and Wireless - Balun - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 10MHz ~ 6GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 8° |
| Insertion Loss (Max) | 2.5dB |
| Return Loss (Min) | 9.42dB |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

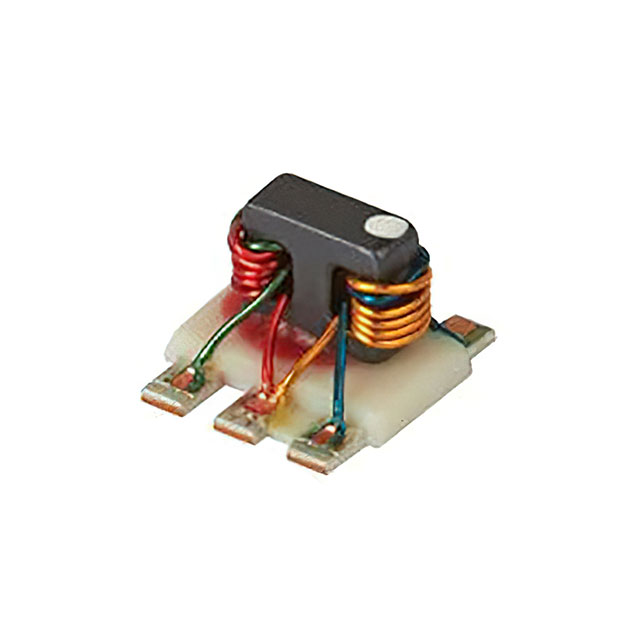

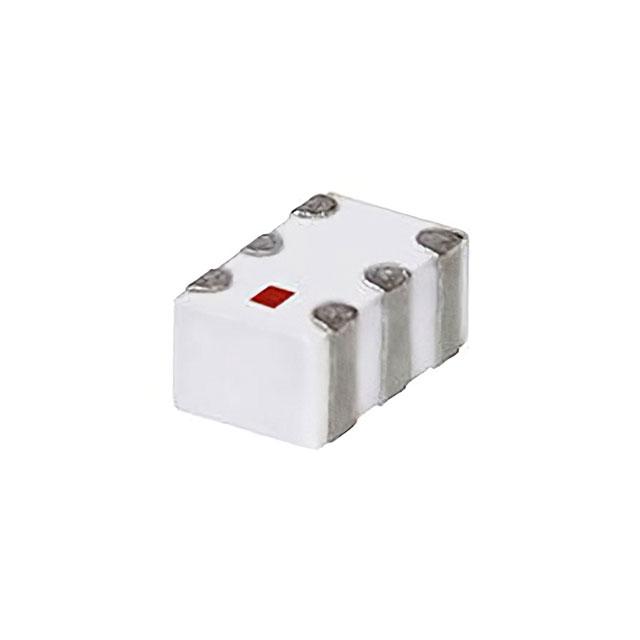

| Part Number | TC4-1W-7A+ | TCML1-11+ | TC1-1-13M+ | TCW2-282+ |
