TCMT1600
lmages are for reference only.TCMT1600
OPTOISOLATOR 3.75KV TRANS 4-SOP
Datasheet4-SOIC (0.173", 4.40mm Width)
21,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
TCMT1600
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SOP |
| Base Product Number | TCMT1600 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

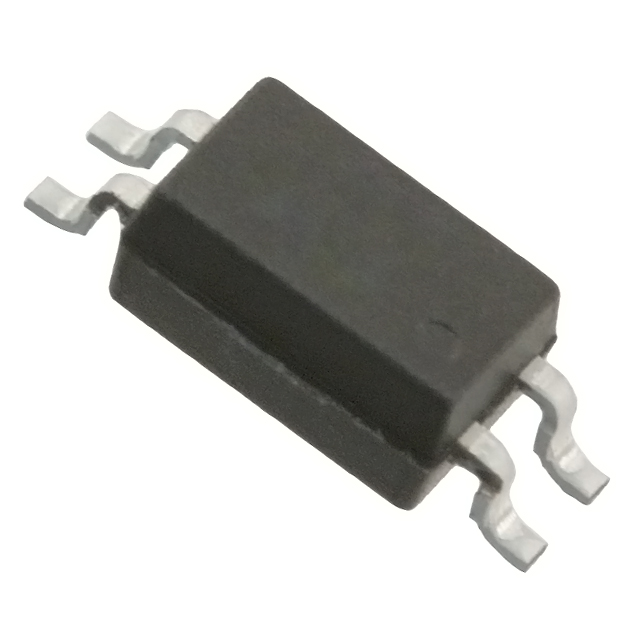

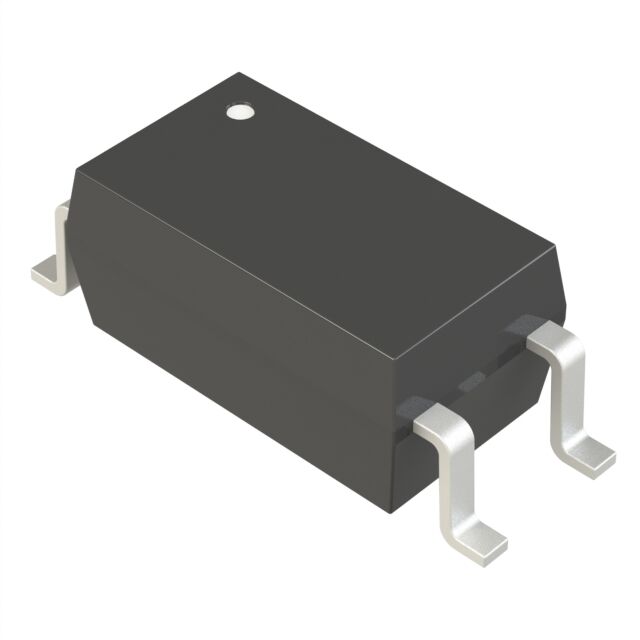

| Part Number | TCMT1600T3 | TCMT1100 | TCMT1101 | TCMT1102 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRANS 4SOP | OPTOISOLATOR 3.75KV TRANS 4-SOP | OPTOISOLATOR 3.75KV TRANS 4SOP | OPTOISOLATOR 3.75KV TRANS 4-SOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
