TCST1030
lmages are for reference only.TCST1030
SENSOR OPT SLOT PHOTOTRANS MODUL
DatasheetSlotted Module, 4-Lead Dual Row
37,109 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optical Sensor Through-Beam 0.122" (3.1mm) Phototransistor Slotted Module, 4-Lead Dual Row
TCST1030
| Category | Sensors, Transducers - Optical Sensors - Photointerrupters Slot Type Transistor Output |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Sensing Distance | 0.122" (3.1mm) |
| Sensing Method | Through-Beam |
| Output Configuration | Phototransistor |
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
| Response Time | 15µs, 10µs |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Slotted Module, 4-Lead Dual Row |
| Type | Unamplified |
| Base Product Number | TCST1030 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

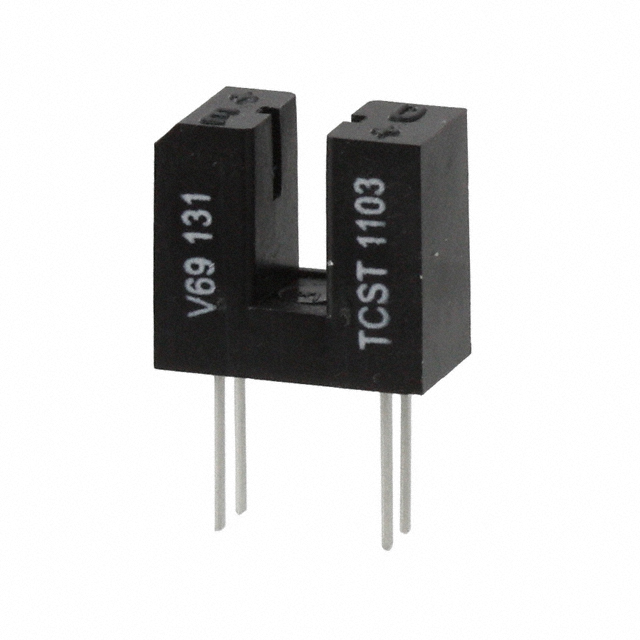

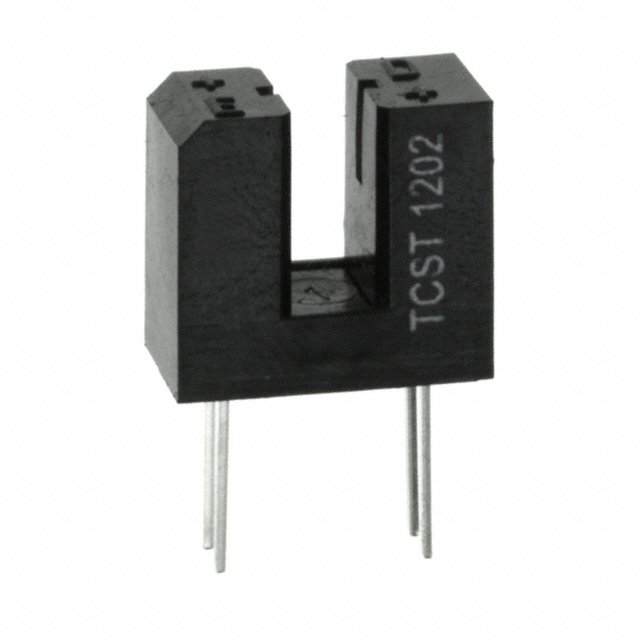

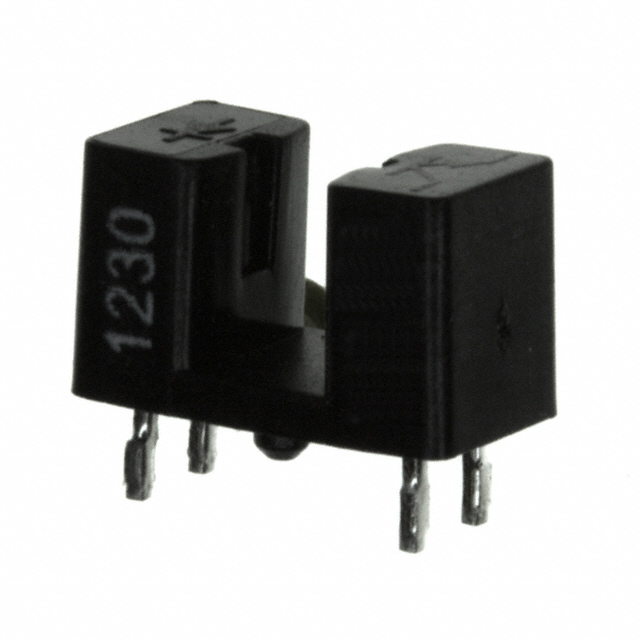

| Part Number | TCST1103 | TCST1202 | TCST1230 | TCST1300 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR OPT SLOT PHOTOTRANS MODUL | SENSOR OPT SLOT PHOTOTRAN PCB MT | SENSOR OPT SLOT PHOTOTRAN PCB MT | SENSOR OPT SLOT PHOTOTRANS MODUL |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
