TD301D485H-E
lmages are for reference only.TD301D485H-E
RS485 DIGITAL ISOLATOR 3000VDC C
Datasheet10-DIP Module, 8 Leads
22,954 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RS485 Transceiver RS485, UART Interface
TD301D485H-E
| Category | Integrated Circuits (ICs) - Interface - Modules |
| Manufacturer | Mornsun America, LLC |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Protocol | RS485 |
| Function | Transceiver |
| Interface | RS485, UART |
| Standards | - |
| Voltage - Supply | 3.15V ~ 3.45V |
| Current - Supply | 130 mA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 10-DIP Module, 8 Leads |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

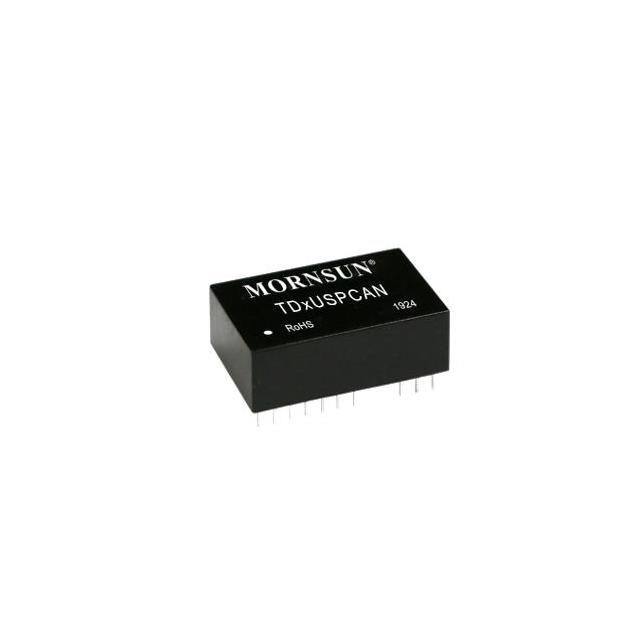

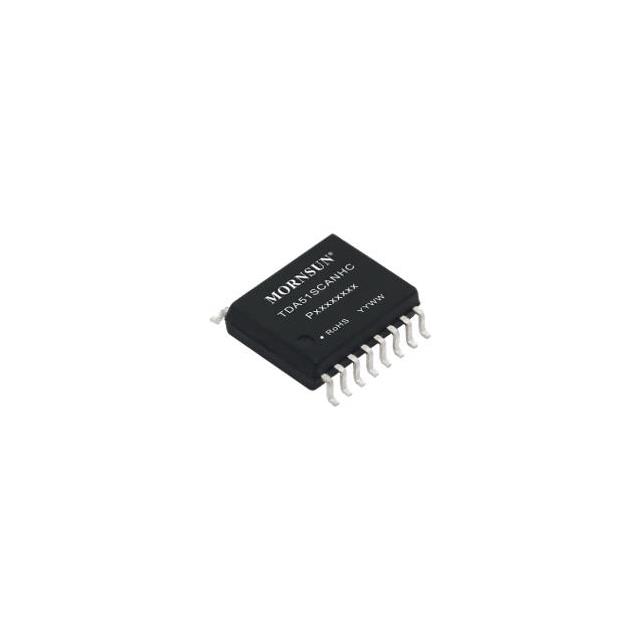

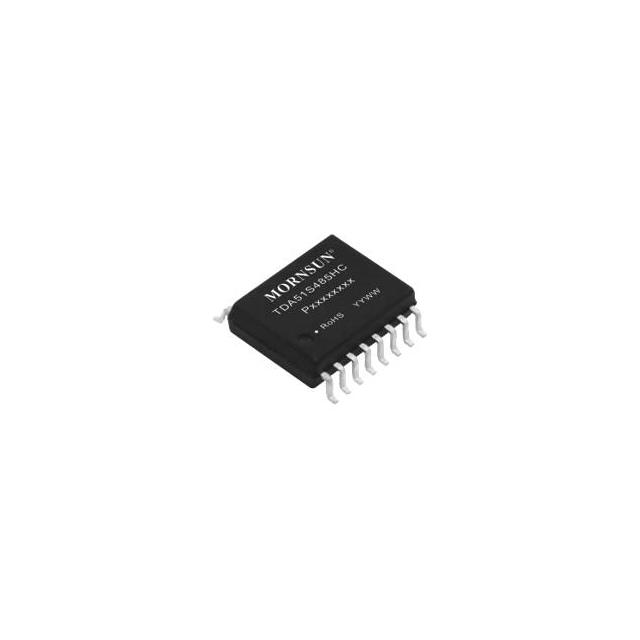

| Part Number | TD341SCAN | TDA51SCANHC | TD5USPCAN | TDA51S485HC |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAN DIGITAL ISOLATOR 3000VDC CHA | CAN DIGITAL ISOLATOR 5000VDC CHA | ISOLATED UART/SPI T TO CAN MODUL | RS485 DIGITAL ISOLATOR 5000VRMS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
