TDA5101
lmages are for reference only.TDA5101
RF TX IC ASK/FSK 315MHZ 16TSSOP
Datasheet16-TSSOP (0.173", 4.40mm Width)
96,970 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Transmitter ASK, FSK 315MHz 5dBm 20kbps PCB, Surface Mount Antenna 16-TSSOP (0.173", 4.40mm Width)
TDA5101
| Category | RF and Wireless - RF Transmitters - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Frequency | 315MHz |
| Applications | Alarm Systems, Communication Systems |
| Modulation or Protocol | ASK, FSK |
| Data Rate (Max) | 20kbps |
| Power - Output | 5dBm |
| Current - Transmitting | 7mA |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Memory Size | - |
| Features | - |
| Voltage - Supply | 2.1V ~ 4V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | PG-TSSOP-16 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

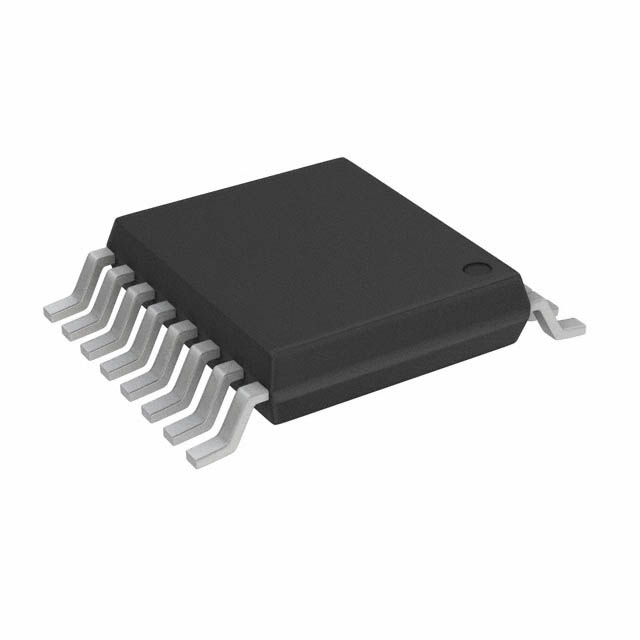

| Part Number | TDA5100XUMA1 | TDA5102XUMA1 | TDA5103AHTMA1 | TDA5150HTMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | RF TX IC ASK 433-435MHZ 16TSSOP | RF TX IC ASK/FSK 915MHZ 16TSSOP | RF TX IC ASK/FSK 345MHZ 10TFSOP | RF TX IC ASK 300-320MHZ 10TFSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
