TDCF160Y104X1GV001T

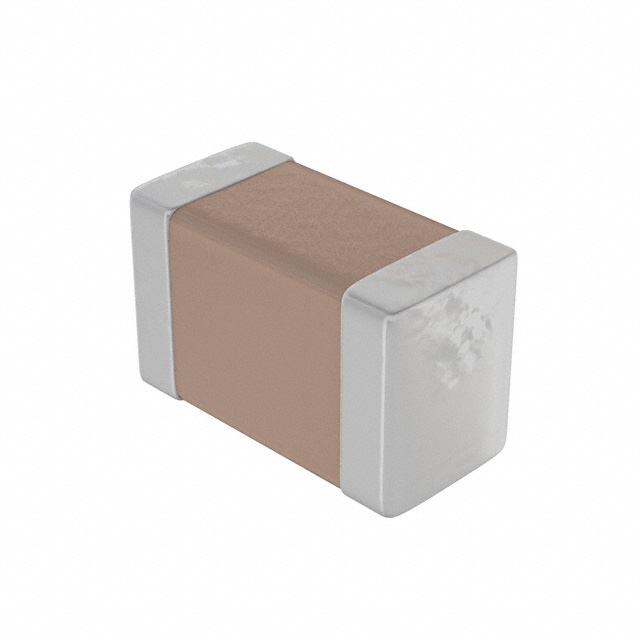

lmages are for reference only.TDCF160Y104X1GV001T
CAP CER 0.1UF 16V Y5V 0402
Datasheet0402 (1005 Metric)
97,438 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.1 µF -20%, +80% 16V Ceramic Capacitor Y5V (F) 0402 (1005 Metric)
TDCF160Y104X1GV001T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | SMD-PME |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.1 µF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 16V |
| Temperature Coefficient | Y5V (F) |
| Operating Temperature | -30°C ~ 85°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.025" (0.64mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TDCF100X104K1GV001T | TDCF160W103K1GV001T | TDCF160W223K1GV001T | TDCF160X104K1GV001T |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.1UF 10V X5R 0402 | CAP CER 10000PF 16V X7R 0402 | CAP CER 0.022UF 16V X7R 0402 | CAP CER 0.1UF 16V X5R 0402 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
