TDCF500G3R3C1GV001T
lmages are for reference only.TDCF500G3R3C1GV001T
CAP CER 3.3PF 50V C0G/NP0 0402
Datasheet0402 (1005 Metric)
87,245 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
TDCF500G3R3C1GV001T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | SMD-PME |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3.3 pF |
| Tolerance | ±0.25pF |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.025" (0.64mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

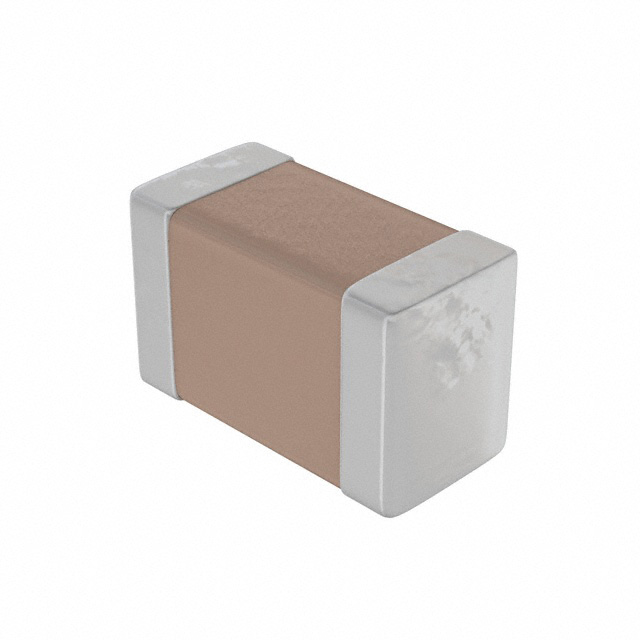

| Part Number | TDCF500G330J1GV001T | TDCF500G3R0B1GV001T | TDCF100X104K1GV001T | TDCF160W103K1GV001T |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 33PF 50V C0G/NP0 0402 | CAP CER 3PF 50V C0G/NP0 0402 | CAP CER 0.1UF 10V X5R 0402 | CAP CER 10000PF 16V X7R 0402 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
