TDSG5150-MN
lmages are for reference only.TDSG5150-MN
DISPLAY 7SEG 0.51" SGL GRN 10DIP
Datasheet10-DIP (0.600", 15.24mm)
43,666 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.4V 20mA 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600", 15.24mm)
TDSG5150-MN
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | TDS.51 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) |
| Digit/Alpha Size | 0.51" (13.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 20mA |
| Millicandela Rating | 14mcd |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 550mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | TDSG5150 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

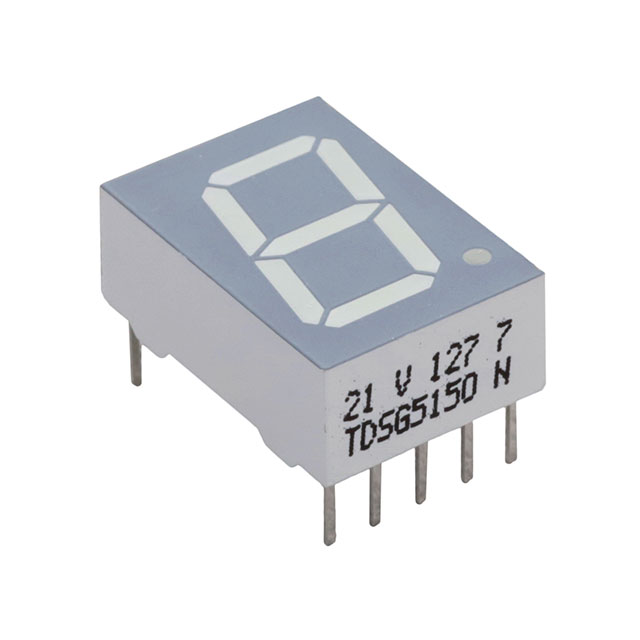

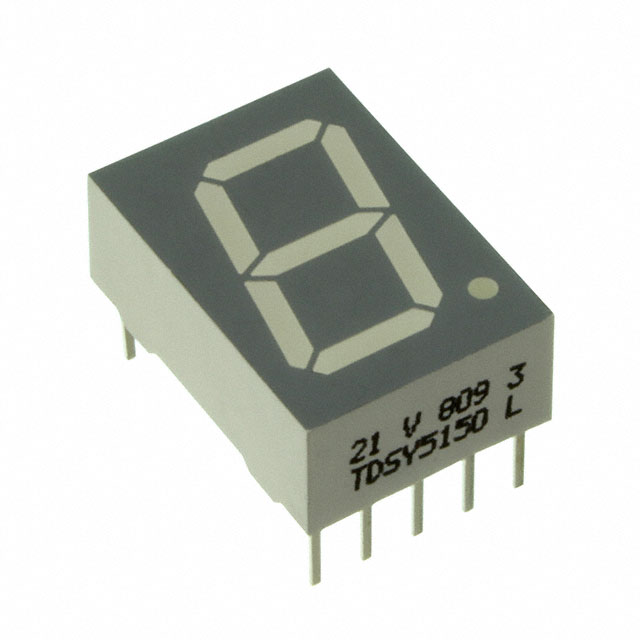

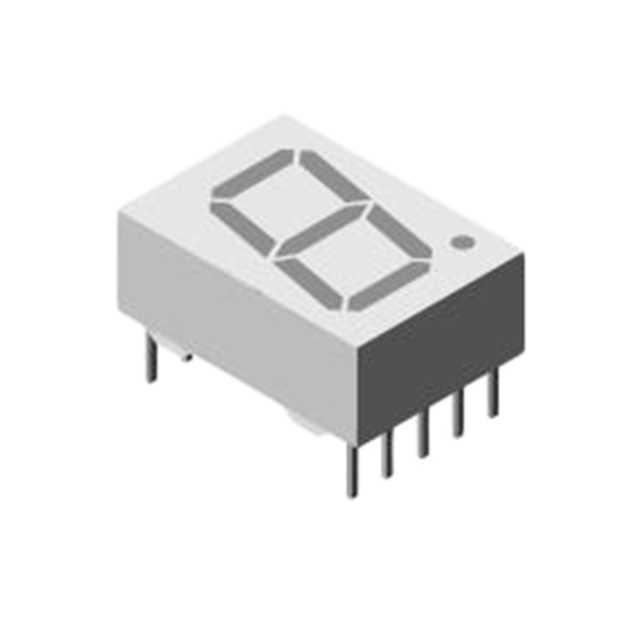

| Part Number | TDSG5150 | TDSG5150-N | TDSG5160 | TDSG5160-MN |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.51" SGL GRN 10DIP | DISPLAY 7SEG 0.51" SGL GRN 10DIP | DISPLAY 7SEG 0.51" SGL GRN 10DIP | DISPLAY 7SEG 0.51" SGL GRN 10DIP |
| Series | TDS.51 | TDS.51 | TDS.51 | TDS.51 |
| Packaging | Bulk | Bulk | Tube | Bulk |
