TDSR0750-HI
lmages are for reference only.TDSR0750-HI
DISPLAY LED 7-SEG 0.28" SGL RED
Datasheet-
13,953 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 1mA 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm)
TDSR0750-HI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.389" H x 0.291" W x 0.236" D (9.90mm x 7.40mm x 6.00mm) |
| Digit/Alpha Size | 0.28" (7.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 1mA |
| Millicandela Rating | 2.2mcd |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 185mW |
| Package / Case | - |
| Base Product Number | TDSR0750 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

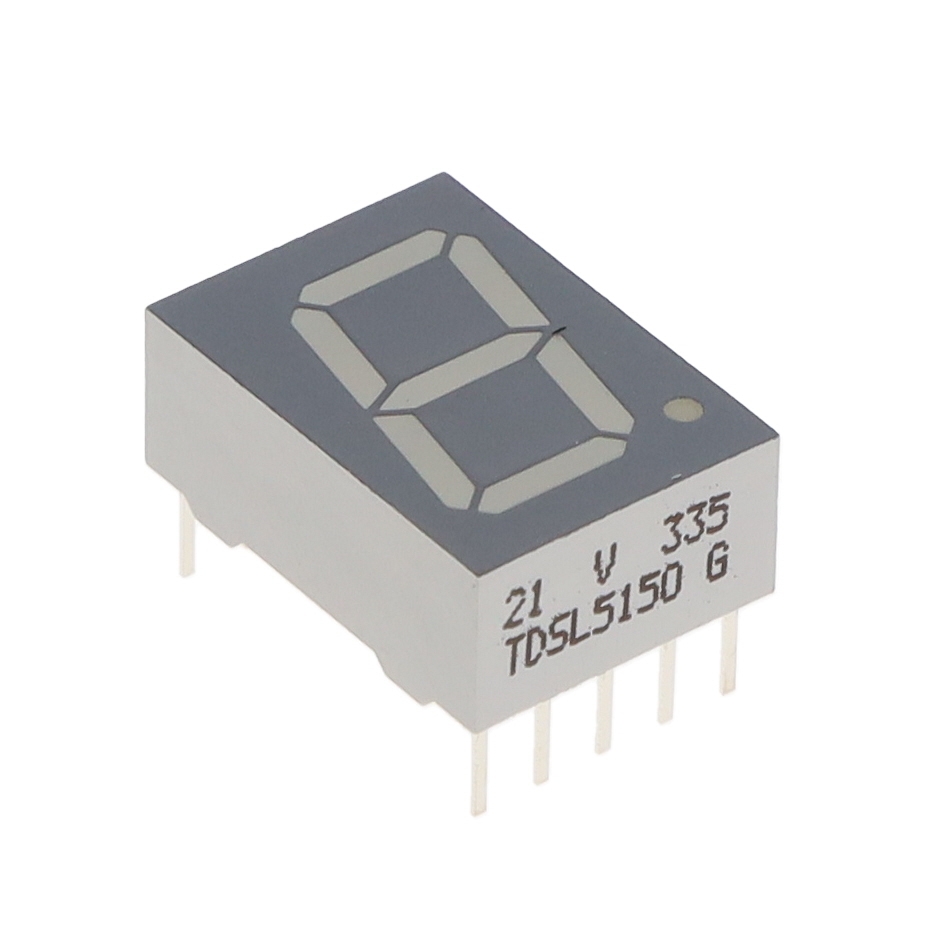

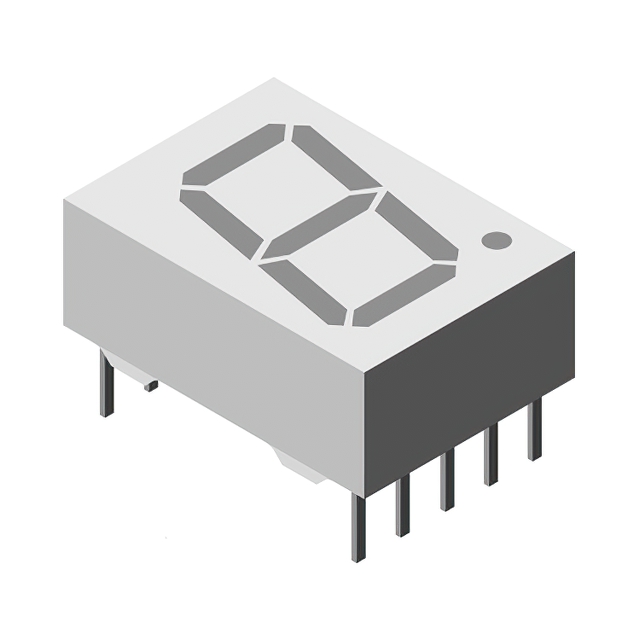

| Part Number | TDSR0750 | TDSR0760 | TDSL5150 | TDSL5160 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY LED 7-SEG 0.28" SGL RED | DISPLAY LED 7-SEG 0.28" SGL RED | DISPLAY 7SEG 0.51" SGL RED 10DIP | DISPLAY 7SEG 0.51" SGL RED 10DIP |
| Series | - | - | TDSL51.0 | TDSL51.0 |
| Packaging | Bulk | Bulk | Bulk | Tube |
