Product CatalogPart Number
TEH140P1R00JE
Manufacturer
OhmiteDescription
140W HEATSINK RES 5% TO247/WITH
Datasheet
DatasheetPackage
TO-247-2
In Stock
53,901 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TEH140P1R00JE
TEH140P1R00JE

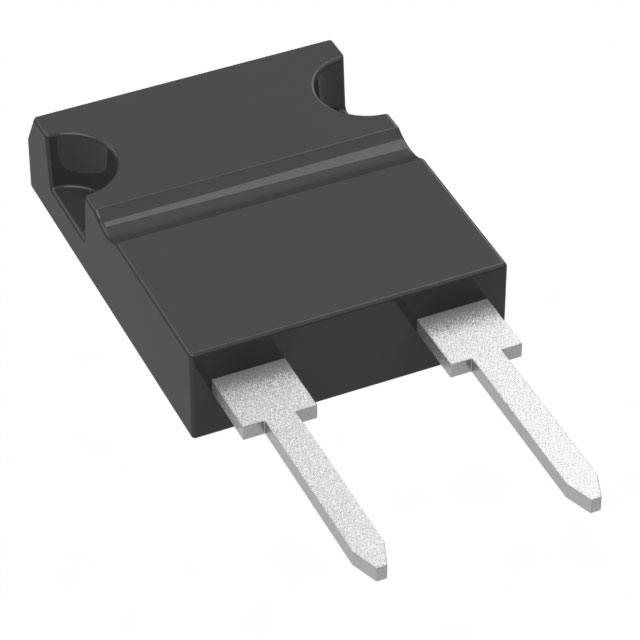

lmages are for reference only.Payment Methods
Delivery Services
1 Ohms ±5% 140W Through Hole Resistor TO-247-2 Non-Inductive, Pulse Withstanding
Quick Inquiry
TEH140P1R00JE
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Ohmite |
| Series | TEH140P |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 140W |
| Composition | - |
| Features | Non-Inductive, Pulse Withstanding |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 175°C |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247 |
| Size / Dimension | 0.614" L x 0.197" W (15.60mm x 5.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TEH140P1R00FE | TEH140P100RFE | TEH140P100RJE | TEH140P10K0FE |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RESISTOR | RESISTOR | 140W HEATSINK RES 5% TO247/WITH | RESISTOR |
| Series | Ohmite | Ohmite | Ohmite | Ohmite |
| Packaging | Tube | Tube | Tube | Tube |
