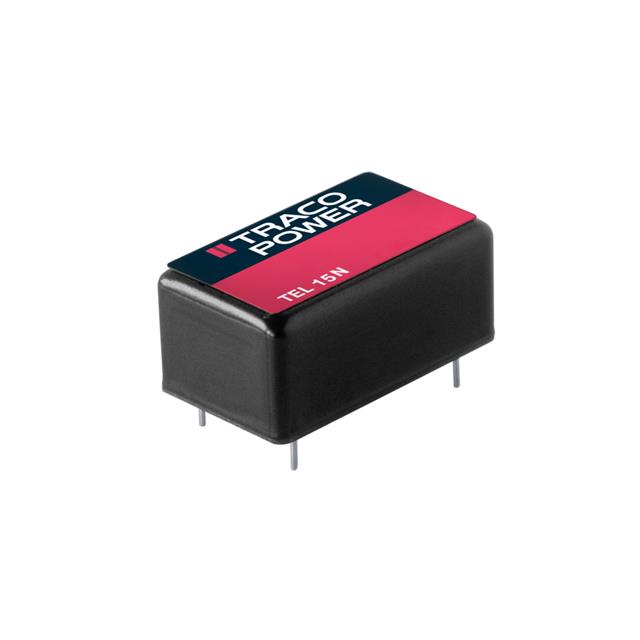

TEL 15-1222N-HS
lmages are for reference only.TEL 15-1222N-HS
ULTRA COMPACT 15 WATT CONVERTER
Datasheet16-DIP Module, 5 Leads
13,408 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 18V Input
TEL 15-1222N-HS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TEL 15N-HS (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA, 625mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Baseplate |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 5 Leads |
| Size / Dimension | 0.96" L x 0.56" W x 0.96" H (24.4mm x 14.3mm x 24.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.8 kV |
| Product Attribute |  |
 |
 |
 |

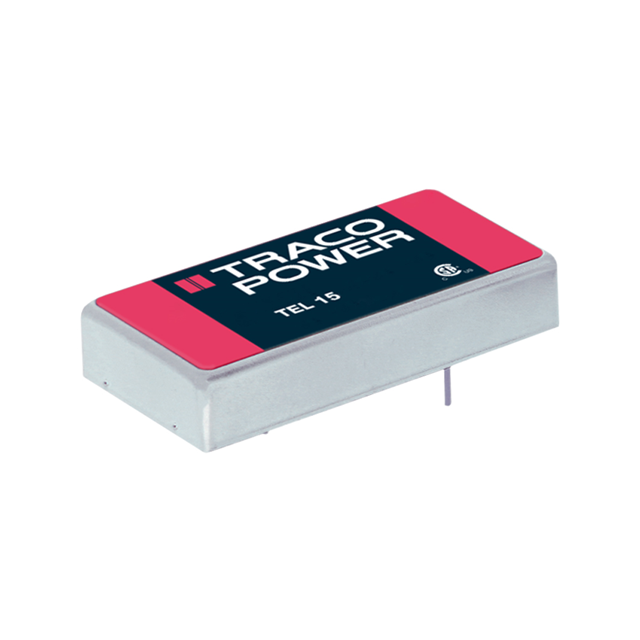

| Part Number | TEL 15-1222N | TEL 15-1210 | TEL 15-1211 | TEL 15-1211N |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ULTRA COMPACT 15 WATT CONVERTER | DC DC CONVERTER 3.3V 9.9W | DC DC CONVERTER 5.1V 15W | ULTRA COMPACT 15 WATT CONVERTER |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
