TEL 15-4811WIN
lmages are for reference only.TEL 15-4811WIN
ULTRA COMPACT 15 WATT CONVERTER
Datasheet16-DIP Module, 5 Leads
66,599 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5.1V 2.94A 18V - 75V Input
TEL 15-4811WIN
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TEL 15WIN (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.94A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Baseplate |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 5 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.8 kV |
| Product Attribute |  |
 |
 |
 |

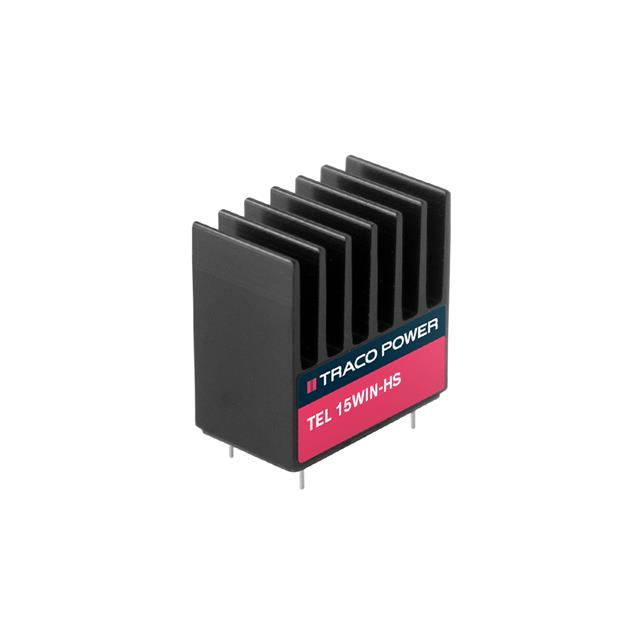

| Part Number | TEL 15-4811WIN-HS | TEL 15-4811 | TEL 15-4811N | TEL 15-4811N-HS |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ULTRA COMPACT 15 WATT CONVERTER | DC DC CONVERTER 5.1V 15W | ULTRA COMPACT 15 WATT CONVERTER | ULTRA COMPACT 15 WATT CONVERTER |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
