TEN 10-11013WIRH

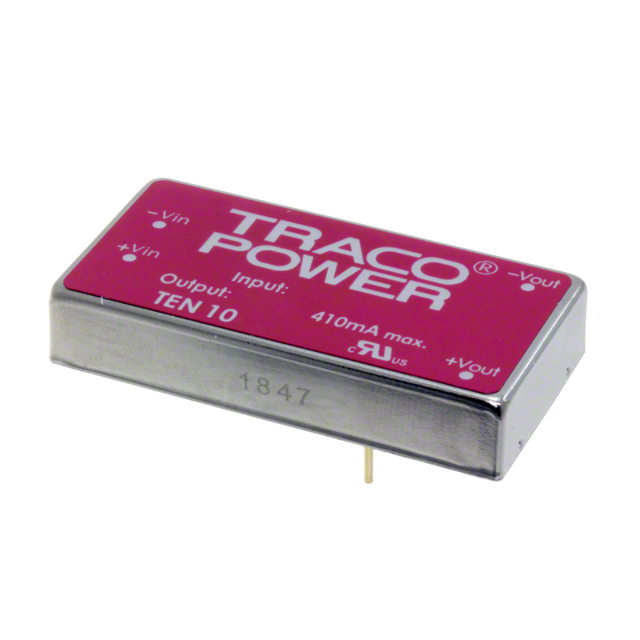

lmages are for reference only.TEN 10-11013WIRH
10 WATT DC/DC, 4000 VAC ISOLATIO
Datasheet24-DIP Module, 9 Leads
50,625 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 670mA 36V - 160V Input
TEN 10-11013WIRH
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TEN (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 670mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

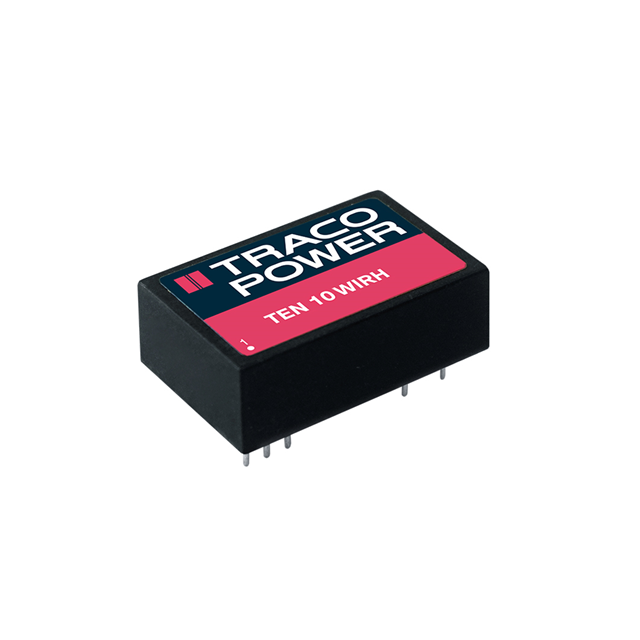

| Part Number | TEN 10-11010WIRH | TEN 10-11011WIRH | TEN 10-11012WIRH | TEN 10-11015WIRH |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10 WATT DC/DC, 4000 VAC ISOLATIO | 10 WATT DC/DC, 4000 VAC ISOLATIO | 10 WATT DC/DC, 4000 VAC ISOLATIO | 10 WATT DC/DC, 4000 VAC ISOLATIO |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
