Product CatalogPart Number
TES 1-0522
Manufacturer
Traco PowerDescription
DC DC CONVERTER +/-12V 960MW
Datasheet
DatasheetPackage
8-SMD Module, 5 Leads
In Stock
16,601 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TES 1-0522
TES 1-0522
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 40mA, 40mA 4.5V - 5.5V Input
Quick Inquiry
TES 1-0522
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TES 1 (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40mA, 40mA |
| Power (Watts) | 960 mW |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | TES 1 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TES 1-0521 | TES 1-0521V | TES 1-0522V | TES 1-0523 |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER +/-12V 1W | DC DC CONVERTER +/-15V 1.1W |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
TES 1-0510
Traco Power
TES 1-0510V
Traco Power
TES 1-0511
Traco Power

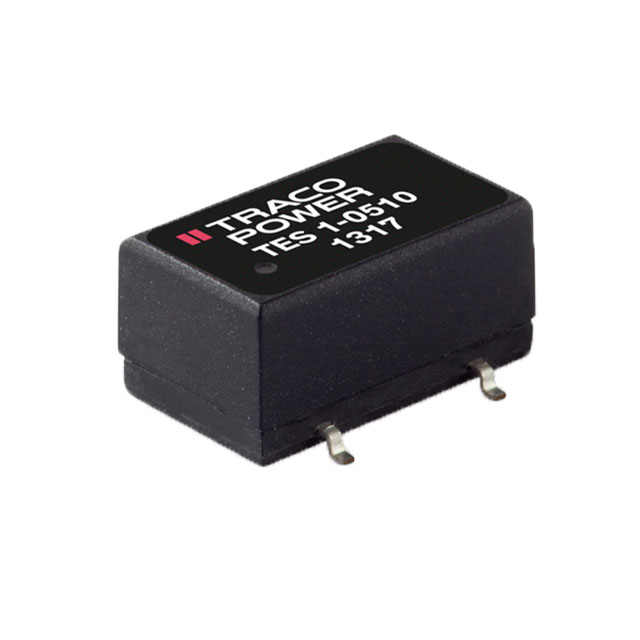

TES 1-0511-TR
Traco Power
TES 1-0511V
Traco Power

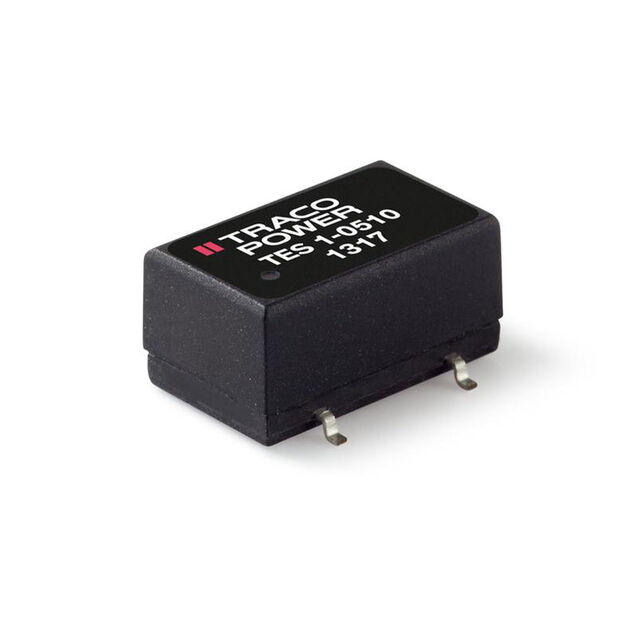

TES 1-0512
Traco Power
TES 1-0512
Traco Power
TES 1-0512V
Traco Power
TES 1-0513
Traco Power
TES 1-0513V
Traco Power

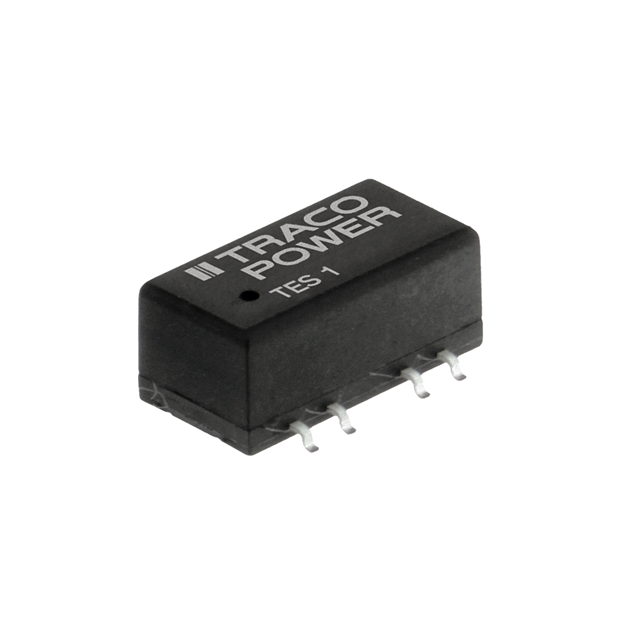

TES 1-0519
Traco Power
TES 1-0521
Traco Power
TES 1-0521V
Traco Power

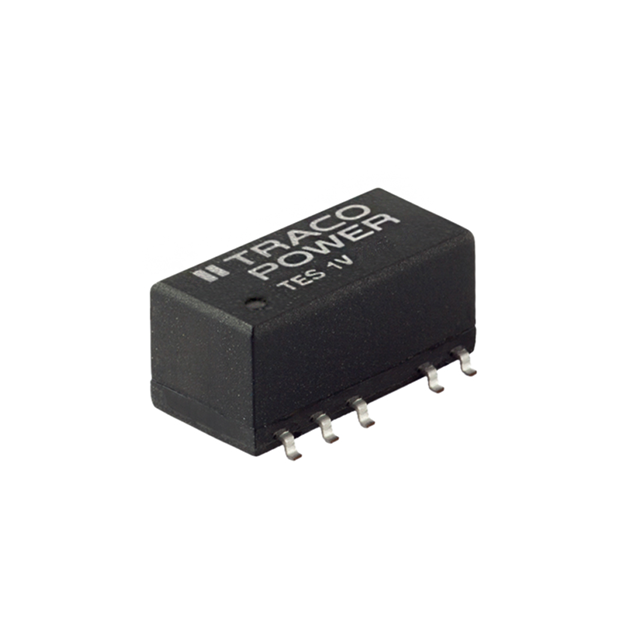

TES 1-0522V
