TESDL5V0B12P1Q0 M7G
lmages are for reference only.TESDL5V0B12P1Q0 M7G
DFN0603-2L, 5V, 70W, 9PF, ESD PR
Datasheet0201 (0603 Metric)
93,097 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount DFN0603-2L

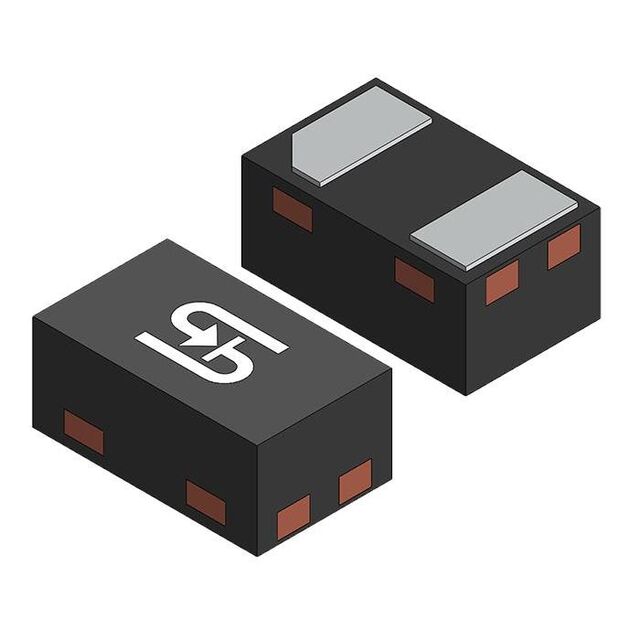

TESDL5V0B12P1Q0 M7G
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.1V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 70W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | 9pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DFN0603-2L |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | TESDL5V0B20P1M5 RKG | TESDL5V0B45P1M3 RWG | TESD24VS2BT RFG | TESD5V0L1UC |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SOD-523F, 5V, 84W, 12.7PF, ESD P | SOD-323, 5V, 130W, 45PF, ESD PRO | TVS DIODE 24VWM 70VC SOT23 | DFN1006L, 5V, 100W, 2PF, ESD PRO |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
