TFCR0805-8W-E-1693BT-CT
lmages are for reference only.Payment Methods
Delivery Services

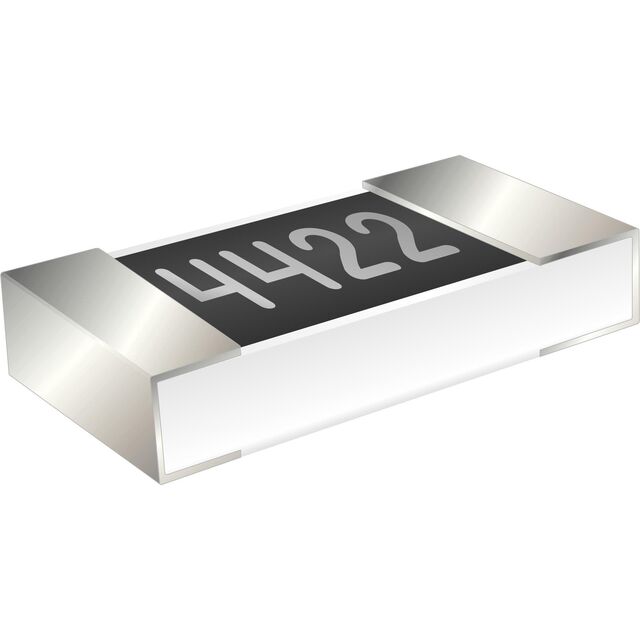

169 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film
TFCR0805-8W-E-1693BT-CT
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Venkel |
| Series | TFCR |
| Packaging | Strip |
| RoHS Status | RoHS Compliant |
| Resistance | 169 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thin Film |
| Features | - |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TFCR0805-8W-E-1003BT-CT | TFCR0805-8W-E-1053BT-CT | TFCR0805-8W-E-1133BT-CT | TFCR0805-8W-E-1213BT-CT |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | THIN FILM CR,0805,1/8W,25PPM,10 | THIN FILM CR,0805,1/8W,25PPM,10 | THIN FILM CR,0805,1/8W,25PPM,11 | THIN FILM CR,0805,1/8W,25PPM,12 |
| Series | Venkel | Venkel | Venkel | Venkel |
| Packaging | Strip | Strip | Strip | Strip |
