TFE10402V06B0DG

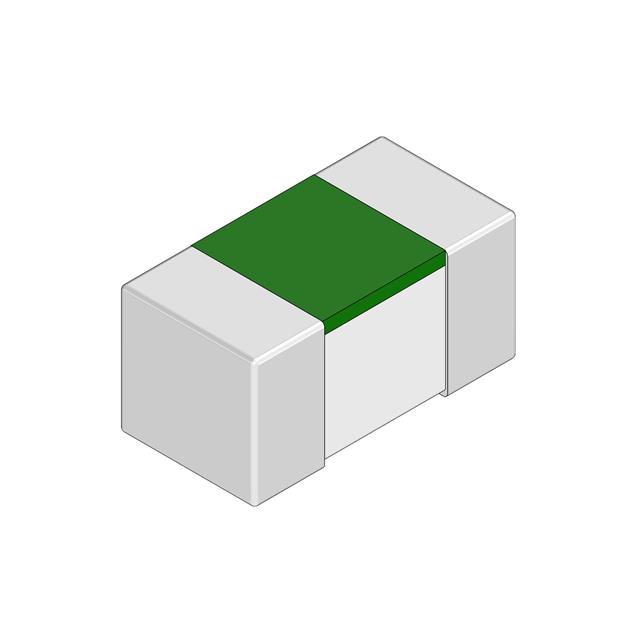

lmages are for reference only.TFE10402V06B0DG
ESD SUPPRESSORS 0402 VDC 6V CP 0
Datasheet0402 (1005 Metric)
46,785 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20V (Typ) Clamp Ipp Tvs Diode Surface Mount 0402
TFE10402V06B0DG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | TFE10402DG |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 20V (Typ) |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.05pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | TFE10201V06B0DG | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 | 5KP36A-TP |
| Manufacturer | INPAQ Technology Co., Ltd | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ESD SUPPRESSORS 0201 VDC 6V CP 0 | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 | TVS DIODE 36VWM 58.1VC R6 |
| Series | INPAQ Technology Co., Ltd | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
