Product CatalogPart Number
TFI0201S-4N0BT
Manufacturer
VenkelDescription
Thin Film Inductor,0201,Standard
Datasheet
DatasheetPackage
0201 (0603 Metric)
In Stock
14,108 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TFI0201S-4N0BT
TFI0201S-4N0BT
lmages are for reference only.Payment Methods
Delivery Services
4 nH Unshielded Thin Film Inductor 150 mA 1.2Ohm 0201 (0603 Metric)
Quick Inquiry
TFI0201S-4N0BT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Venkel |
| Series | TFI |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 4 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2Ohm |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | TFI0201S-4N1BT | TFI0201S-4N2BT | TFI0201S-4N2BT | TFI0201S-4N7HT |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | Thin Film Inductor,0201,Standard | Thin Film Inductor,0201,Standard | Thin Film Inductor,0201,Standard | Thin Film Inductor,0201,Standard |
| Series | Venkel | Venkel | Venkel | Venkel |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
TFI0201Q-1N2BT
Venkel
TFI0201Q-1N2BT-CT
Venkel
TFI0201Q-2N2BT
Venkel
TFI0201Q-2N2BT-CT
Venkel
TFI0201Q-5N6HT
Venkel
TFI0201Q-5N6HT-CT
Venkel
TFI0201S-0N7BT
Venkel

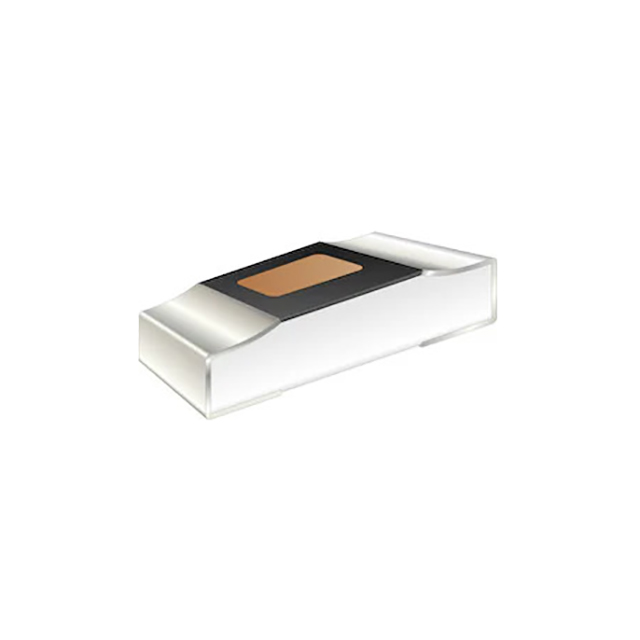

TFI0201S-0N8BT
