THCX222R10
lmages are for reference only.THCX222R10
10.0 GBPS USB3.1 GEN2 REPEAT WIT
Datasheet30-WFQFN Exposed Pad
19,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buffer, ReDriver 2 Channel 10Gbps 30-QFN (2.5x4.5)
THCX222R10
| Category | Integrated Circuits (ICs) - Interface - Signal Buffers-Repeaters-Splitters |
| Manufacturer | THine Solutions, Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Buffer, ReDriver |
| Applications | USB |
| Input | CML |
| Output | CML |
| Data Rate (Max) | 10Gbps |
| Number of Channels | 2 |
| Delay Time | 150ps |
| Signal Conditioning | Input Equalization |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 84mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 30-WFQFN Exposed Pad |
| Supplier Device Package | 30-QFN (2.5x4.5) |
| Base Product Number | - |
| Capacitance - Input | 1.1 pF |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

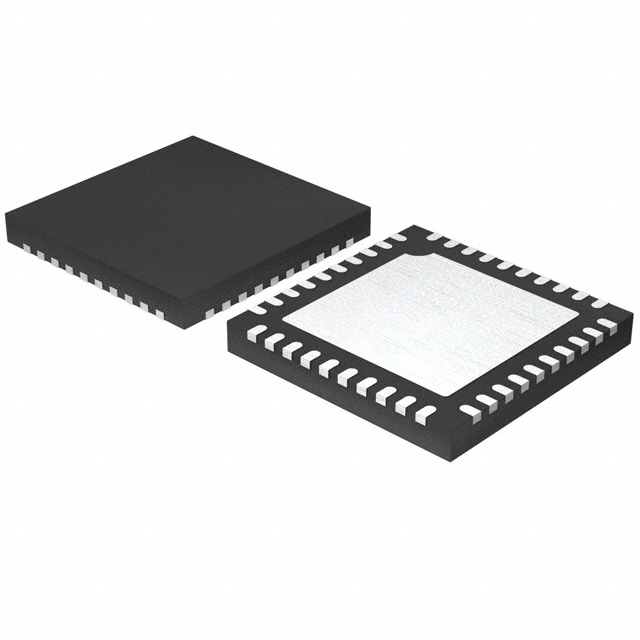

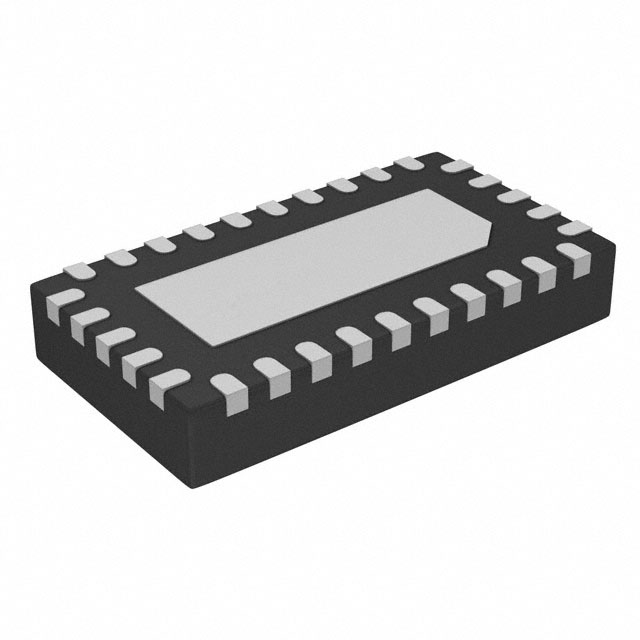

| Part Number | THCX222R05 | THCX222R05-B | THCX222R10-B | THCX423R10 |
| Manufacturer | THine Solutions, Inc. | CEL | CEL | THine Solutions, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 5.0 GBPS USB3.1 GEN1 REPEAT WITH | 5.0 GBPS USB3.1 GEN1 REPEAT WITH | 10.0 GBPS USB3.1 GEN2 REPEAT WIT | 10.0 GBPS USB3.1 GEN1 MUX DE-MUX |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
