Product CatalogPart Number
THN 20-4810WIR
Manufacturer
Traco PowerDescription
20 WATT DC/DC CONVERTER, RAILWAY
Datasheet
DatasheetPackage
6-DIP Module
In Stock
33,143 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

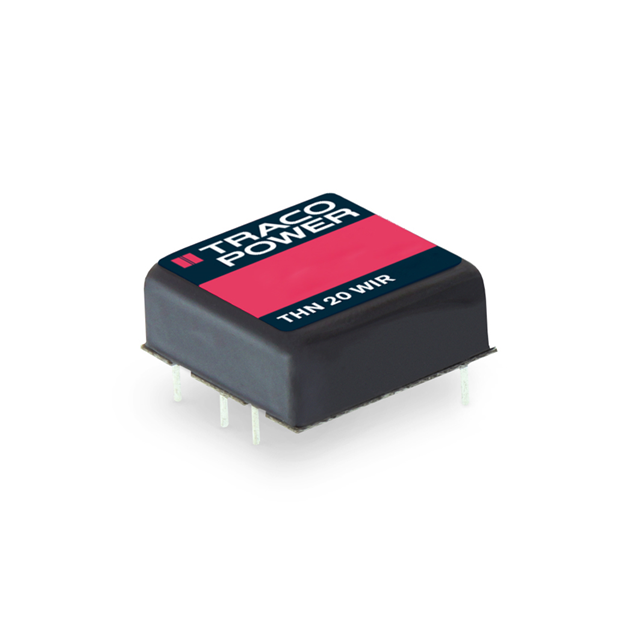

THN 20-4810WIR
THN 20-4810WIR
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 5.5A 18V - 75V Input
Quick Inquiry
THN 20-4810WIR
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | THN 20WIR (20W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5.5A |
| Power (Watts) | 18 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, cURus |
| Standard Number | 50155; 62368-1 |
| Base Product Number | THN 20 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | THN 20-4810 | THN 20-4810WI | THN 20-4810WIR | THN 20-4811 |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 15W | DC DC CONVERTER 3.3V 15W | 20 WATT DC/DC CONVERTER, RAILWAY | DC DC CONVERTER 5V 20W |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
THN 20-1210
Traco Power
THN 20-1211
Traco Power
THN 20-1212
Traco Power
THN 20-1213
Traco Power

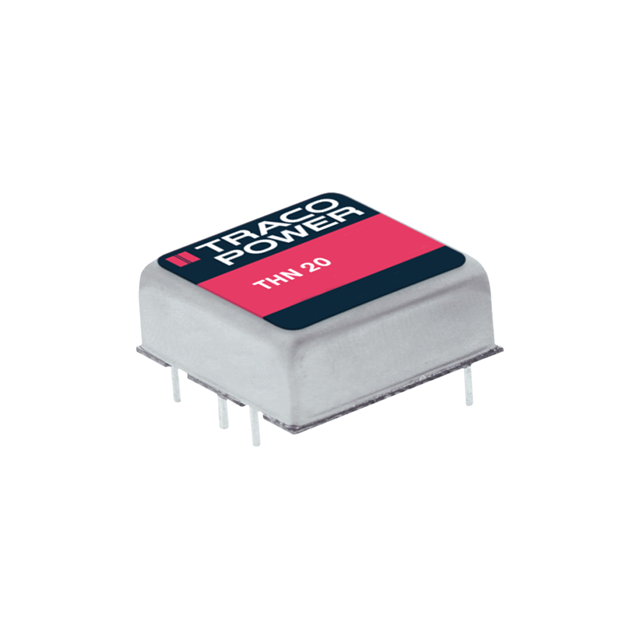

THN 20-1222
