TK39A60W,S4VX
lmages are for reference only.TK39A60W,S4VX
MOSFET N-CH 600V 38.8A TO220SIS
DatasheetTO-220-3 Full Pack
39,046 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 38.8A (Ta) 50W (Tc) Through Hole TO-220SIS
TK39A60W,S4VX
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | DTMOSIV |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 38.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 19.4A, 10V |
| Vgs(th) (Max) @ Id | 3.7V @ 1.9mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4100 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220SIS |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | TK39A60 |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

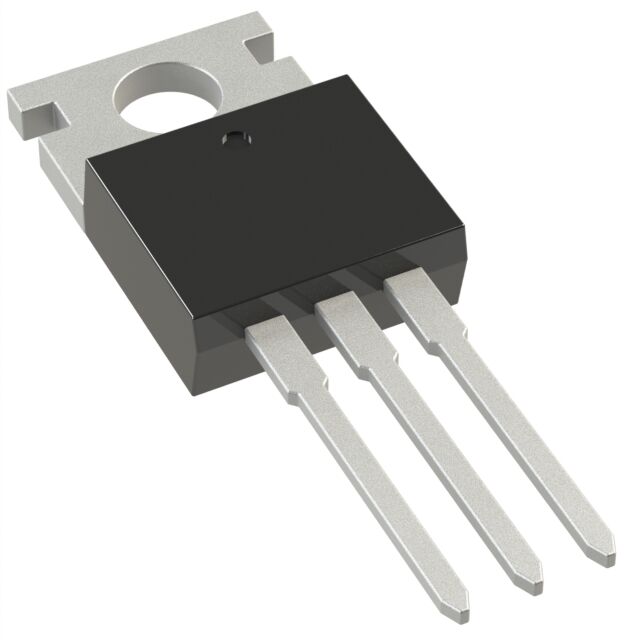

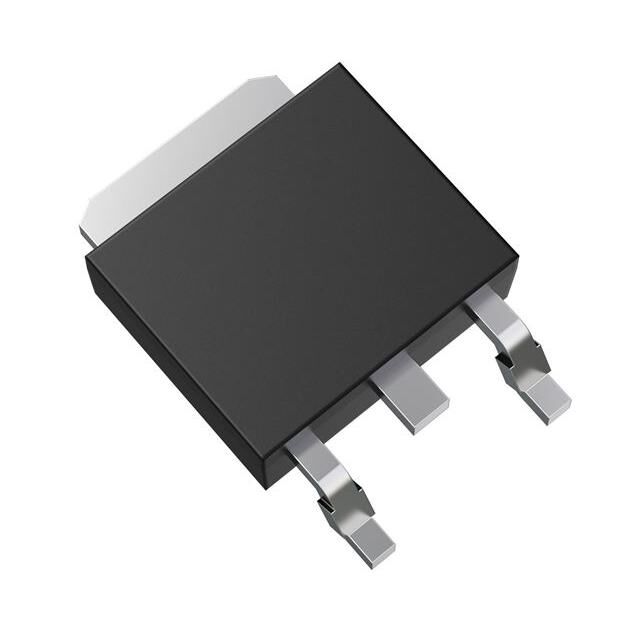

| Part Number | TK30A06N1,S4X | TK30E06N1,S1X | TK30S06K3L(T6L1,NQ | TK31A60W,S4VX |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 30A TO220SIS | MOSFET N-CH 60V 43A TO220 | MOSFET N-CH 60V 30A DPAK | MOSFET N-CH 600V 30.8A TO220SIS |
| Series | U-MOSVIII-H | U-MOSVIII-H | U-MOSIV | DTMOSIV |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
