TK3R1E04PL,S1X

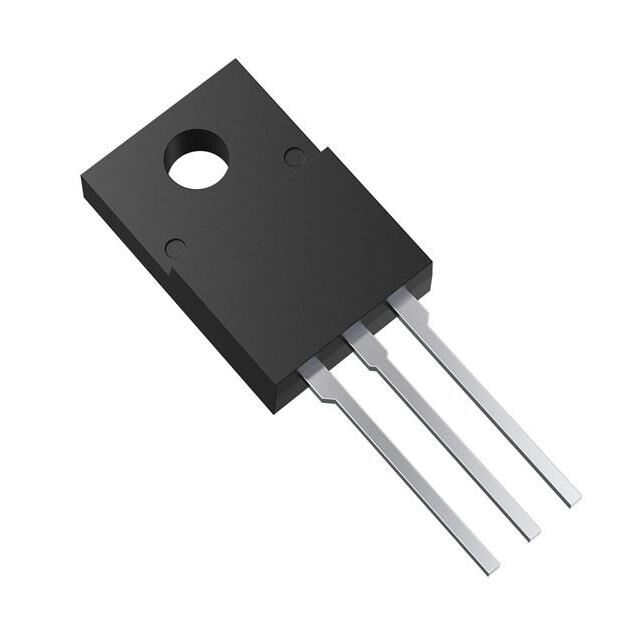

lmages are for reference only.TK3R1E04PL,S1X
MOSFET N-CH 40V 100A TO220
DatasheetTO-220-3
80,492 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 100A (Tc) 87W (Tc) Through Hole TO-220
TK3R1E04PL,S1X
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSIX-H |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 30A, 4.5V |
| Vgs(th) (Max) @ Id | 2.4V @ 500µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4670 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 87W (Tc) |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | TK3R1E04 |
| Gate Charge (Qg) (Max) @ Vgs | 63.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TK3R1A04PL,S4X | TK3R1P04PL,RQ | TK3R2A08QM,S4X | TK3R2A10PL,S4X |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 40V 82A TO220SIS | MOSFET N-CHANNEL 40V 58A DPAK | UMOS10 TO-220SIS 80V 3.2MOHM | X35 PB-F POWER MOSFET TRANSISTOR |
| Series | U-MOSIX-H | U-MOSIX-H | U-MOSX-H | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
