Product CatalogPart Number
TL1017AAAF160QG
Manufacturer
E-SwitchDescription
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
DatasheetPackage
-
In Stock
19,160 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TL1017AAAF160QG
TL1017AAAF160QG

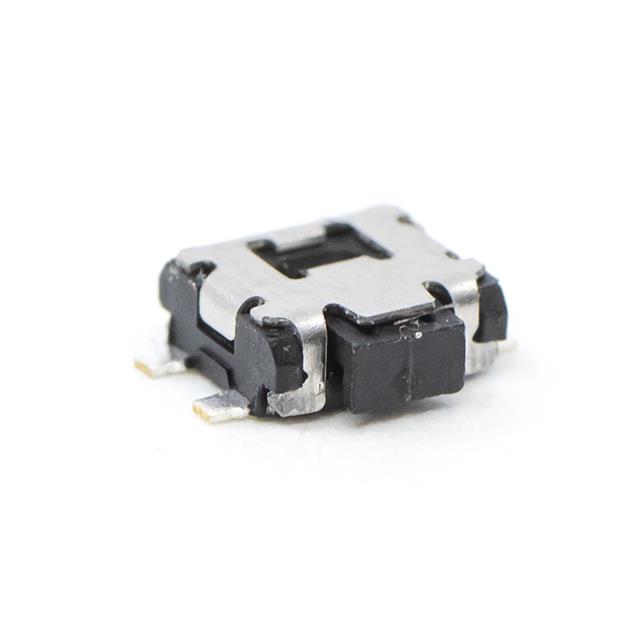

lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
TL1017AAAF160QG
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | E-Switch |
| Series | TL1017 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 1.50mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Outline | - |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | - |
| Switch Travel | 0.15mm |
| Mechanical Life | 200,000 Cycles |
| Base Product Number | TL1017 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TL1017AAAF260QG | TL1014AF160QG | TL1014AF180QG | TL1014AF220QG |
| Manufacturer | E-Switch | E-Switch | E-Switch | E-Switch |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V |
| Series | TL1017 | TL1014 | TL1014 | TL1014 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
