TLC5940NT

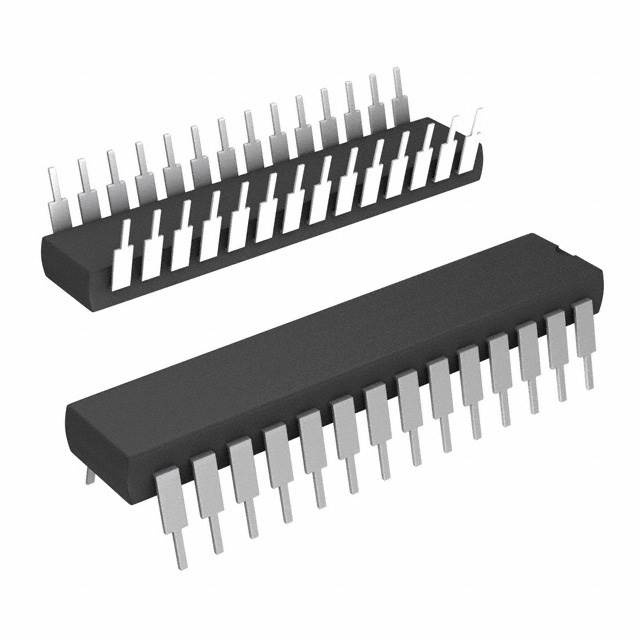

lmages are for reference only.TLC5940NT
IC LED DRIVER LINEAR 120MA 28DIP
Datasheet28-DIP (0.300", 7.62mm)
50,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 16 Output Linear Shift Register Dimming 120mA 28-PDIP
TLC5940NT
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Linear |
| Topology | Shift Register |
| Internal Switch(s) | Yes |
| Number of Outputs | 16 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 17V |
| Current - Output / Channel | 120mA |
| Frequency | 30MHz |
| Dimming | - |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PDIP |
| Base Product Number | TLC5940 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLC5940NTG4 | TLC59401PWP | TLC59401PWPR | TLC59401RHBR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRIVER LINEAR 120MA 28DIP | IC LED DRVR LIN 120MA 28HTSSOP | IC LED DRVR LIN 120MA 28HTSSOP | IC LED DRVR LINEAR 120MA 32VQFN |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
