TLD5S33AH

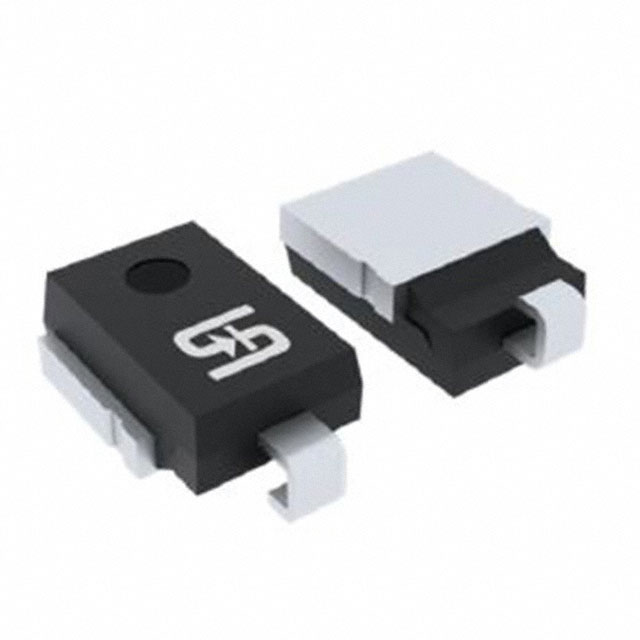

lmages are for reference only.TLD5S33AH
TVS DIODE 33VWM 53.3VC DO218AB
DatasheetDO-218AB
31,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
53.3V Clamp 68A Ipp Tvs Diode Surface Mount DO-218AB
TLD5S33AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse (10/1000µs) | 68A |
| Power - Peak Pulse | 2800W (2.8kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | TLD5S33 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLD5S30AH | TLD5S36AH | TLD5S10AH | TLD5S11AH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 30VWM 48.4VC DO218AB | TVS DIODE 36VWM 58.1VC DO218AB | TVS DIODE 10VWM 17VC DO218AB | TVS DIODE 11VWM 18.2VC DO218AB |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
