TLD8S22CAH

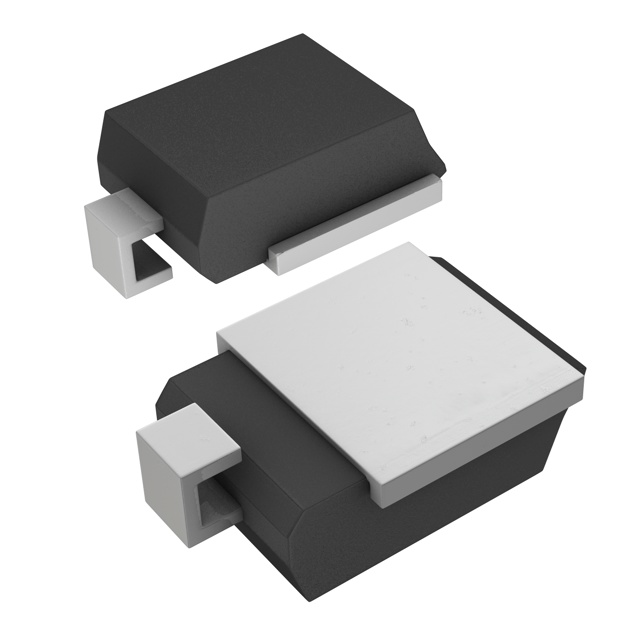

lmages are for reference only.TLD8S22CAH
6600W, 25.65V, 5%, BIDIRECTIONAL
DatasheetDO-218AB
47,095 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
35.5V Clamp 186A Ipp Tvs Diode Surface Mount DO-218AB
TLD8S22CAH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Current - Peak Pulse (10/1000µs) | 186A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLD8S22AH | TLD8S10AH | TLD8S10CAH | TLD8S11AH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 22VWM 35.5VC DO218AB | TVS DIODE 10VWM 17VC DO218AB | 6600W, 11.7V, 5%, BIDIRECTIONAL, | TVS DIODE 11VWM 18.2VC DO218AB |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
