TLHR5400-AS12Z
lmages are for reference only.TLHR5400-AS12Z
LED RED DIFFUSED T-1 3/4 T/H
DatasheetRadial
70,860 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 619nm LED Indication - Discrete 2V Radial
TLHR5400-AS12Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | TLH.54 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 10mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 619nm |
| Wavelength - Peak | 635nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | - |
| Height (Max) | 12.80mm |
| Base Product Number | TLHR5400 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

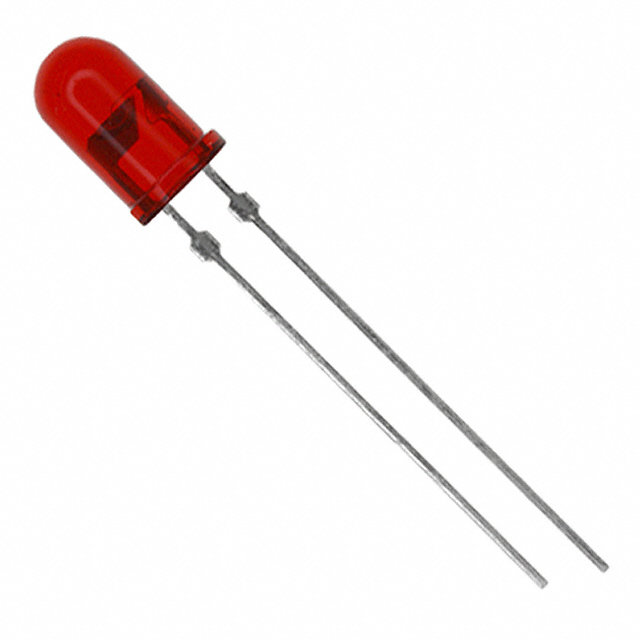

| Part Number | TLHR5400 | TLHR4200 | TLHR4201 | TLHR4205 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFFUSED T-1 3/4 T/H | LED RED CLEAR T-1 T/H | LED RED CLEAR T-1 T/H | LED RED CLEAR T-1 T/H |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
