TLP160G(U,F)
lmages are for reference only.TLP160G(U,F)
OPTOISOLATOR 2.5KV TRIAC 6MFSOP
Datasheet6-SOIC (0.173", 4.40mm Width), 4 Leads
49,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 2500Vrms 1 Channel 6-MFSOP, 4 Lead
TLP160G(U,F)
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 200V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | 30µs |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-MFSOP, 4 Lead |
| Approval Agency | UR |
| Base Product Number | TLP160G |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Product Attribute | |
|
|
|
| Part Number | TLP160G(DMT7-TPL,F | TLP160G(DT-TPL,F) | TLP160G(F) | TLP160G(IFT5,U,F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ||||
| Description | PHOTOCOUPLER | PHOTOCOUPLER | PHOTOCOUPLER | PHOTOCOUPLER |
| Series | * | * | * | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Recommended Products
.jpg "TLP160G(TPR,U,F)")

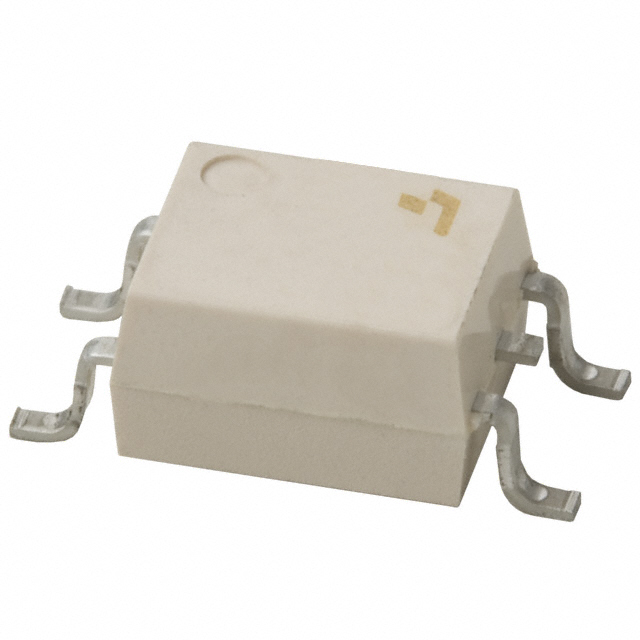

.jpg "TLP160J(TPR,U,C,F)")
