Optoisolator Transistor Output 3750Vrms 1 Channel 6-SOP

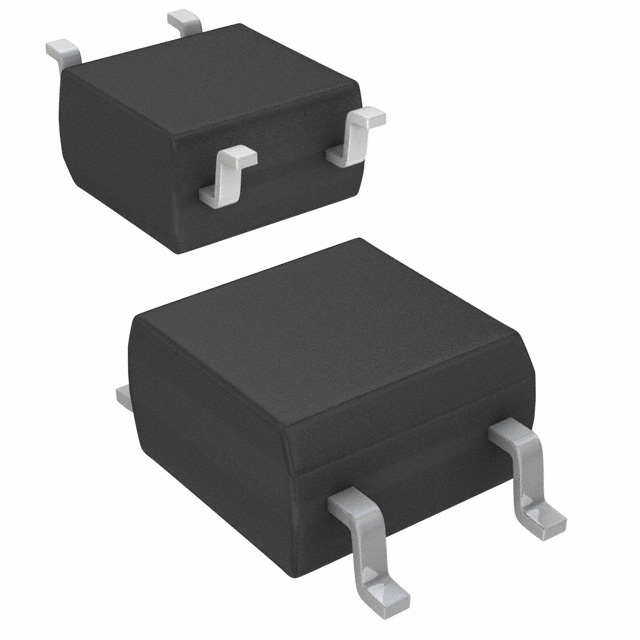

TLP184(GB-TPR,E)
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Turn On / Turn Off Time (Typ) | 9µs, 9µs |
| Rise / Fall Time (Typ) | 5µs, 9µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
| Base Product Number | TLP184 |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "TLP184(GB-TPL,E)") |
 |
 |
 |
| Part Number | TLP184(GB-TPL,E) | TLP184(GB-TPL,SE | TLP184(GB-TPR,SE | TLP184(BL-TPL,SE |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OPTOISO 3.75KV TRANS 6-SO 4 LEAD | OPTOISO 3.75KV TRANS 6-SO 4 LEAD | OPTOISO 3.75KV TRANS 6-MFSOP | OPTOISO 3.75KV TRANS 6-SO 4 LEAD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
