TLP2303(E
lmages are for reference only.TLP2303(E
X36 PB-F PHOTOCOUPLER SO6 BULK
Datasheet6-SOIC (0.179", 4.55mm Width), 5 Leads
88,706 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO, 5 Lead
TLP2303(E
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 500% @ 5mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 18V |
| Current - Output / Channel | 80mA |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Base Product Number | TLP2303 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP2303(TPL,E | TLP2303(TPR,E | TLP2301(E | TLP2301(TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OPTOISO 3.75KV TRANS 6-SO 5 LEAD | X36 PB-F PHOTOCOUPLER SO6 TAPE & | X36 PB-F PHOTOCOUPLER SO6 BULK R | OPTOISO 3.75KV TRANS 6-SO 4 LEAD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

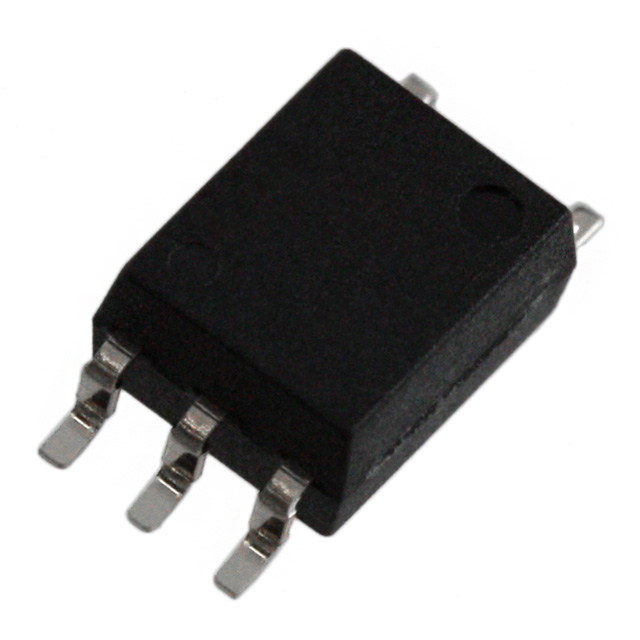

.jpg "TLP2309(E)")
